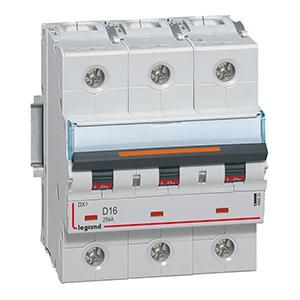

Legrand 409833 Circuit breaker DX3 D16A 3P 25KA 4, 5M

Brand:Legrand
To compare
To favorites
SKU:244282
Legrand 409833 Circuit breaker DX3 D16A 3P 25KA 4, 5M
Insert Module Type
Manufacturer
HAN
GTIN
In stock
€160.74
11
Shipping information
International shipping DHL
Рассчитываем стоимость доставки...
DPD
Рассчитываем стоимость доставки...
UPS
Рассчитываем стоимость доставки...
Description
Features
Reviews

Legrand miniature circuit breaker DX3 according to EN 60947-2, 3-pole, D characteristic, rated current In 16 A, rated switching capacity 25 kA according to EN 60947-2, rated voltage Un 400 VAC, rated frequency 50/60 Hz, fastening on top hat rail EN 60715 using two snap-in quick fasteners, clear information on the front of each device, clear switch position indicator red/green, with labeling window, with protection against misplacement for safe insertion of the conductor into the elevator terminal, attachment of auxiliary devices possible. Circuit breakers with D characteristics are intended for line protection in power circuits with very high inrush currents (e.g. welding transformers).

Property Value
Tripping characteristic: D
Rated current: 16 A
Rated voltage: 400 V
Type of voltage: AC
Frequency: 50 to 60 Hz
Width in pitch units: 4.5
Number of poles (total): 3
Additional equipment possible: yes
Installation depth: 47 mm
Protection class (IP): IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V: 50 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V: 25 kA
Pollution level: 3
Switching neutral conductor: no
Number of protected poles: 3
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 6 kV
Ambient temperature during operation: -25 to 70 °C
Connectable conductor cross-section, stranded: 1.5 to 35 mm²
Connectable conductor cross-section single-wire: 1.5 to 50 mm²
Features
Insert Module Type
Manufacturer
HAN
GTIN
Connectable conductor cross-section solid
Connectable conductor cross-section stranded
Number of protected poles
Trigger characteristics
Rated insulation voltage Ui
Rated switching capacity Icu according to IEC 60947-2 at 230 V
Rated switching capacity Icu according to IEC 60947-2 at 400 V
Rated voltage
Rated impulse withstand voltage Uimp
Rated current
Width in pitch units
Installation depth
Frequency
Switching neutral conductor
Number of poles (total)
IP protection)
Voltage type
Ambient temperature during operation
Degree of contamination
Additional equipment possible
