Description

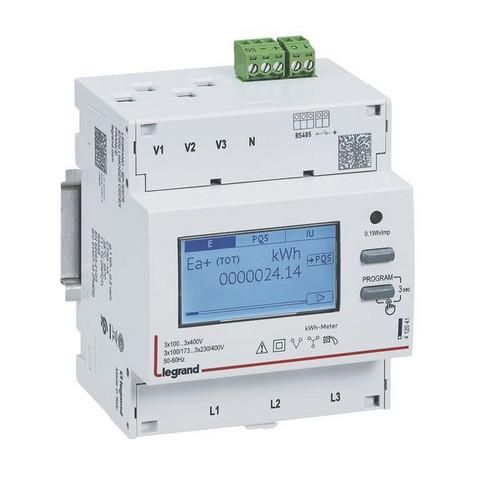

Legrand energy meter EMDX³, 3-phase, connection via current transformer (CT), transformer range x/5, 4-module, with RS485 interface, for measuring the active energy consumed in a 3-phase circuit.
| Property | Value |
| Width in division units: | 4 |
| Calibrated: | yes |
| Pole type: | Three-wire/four-wire |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| Accuracy class: | B |
| Maximum current (Imax): | 6 A |
| Rated voltage (Un) NL: | 197 to 265 V |
| Protection class (IP): | IP54 |
| Frequency: | 47 to 63 Hz |
| Tariff version: | Two-tariff |
| Tariff control: | external |
| Energy type: | Active and reactive power |
| Nominal current (In): | 5 A |
| Design: | Measuring transformer |
| Measurement type load profile: | no |
| With lock code: | yes |
| Nominal voltage (Un) LL: | 340 to 460 V |
| Number of digits: | 9 |
| Suitable for: | Purchase/delivery |
| Backstop: | yes |
| Approval: | National |
| Pulse output: | without |
| Interface design: | RS-485 |
Features
Insert Module Type
Light switch covers
Maximum current (Imax)
6 A
Accuracy class
B
HAB
412041 EMDX³ 3-ph. A ü. SW x/5 RS485 4TE
Manufacturer
HAN
412041
GTIN
3414971413733
Version
Transducer
Implementation of the interface
RS-485
Width in pitch units
4
Frequency
47 to 63 Hz
Suitable for
Purchase/Delivery
Mounting type
REG
Nominal current (In)
5A
IP protection)
IP54
Permit
Domestic
