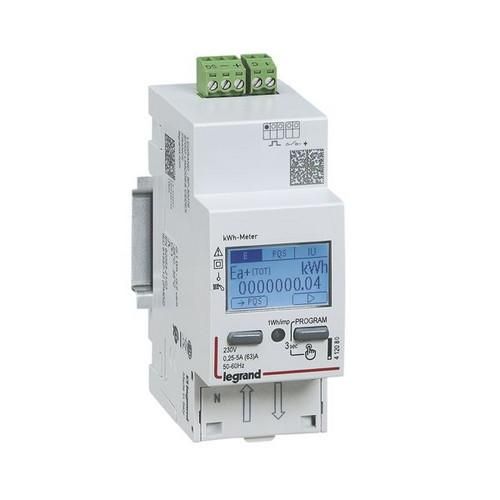

Legrand energy meter EMDX³, 63 A, 1-phase, direct connection, 2-module, with pulse output, for measuring the active energy consumed in a 1-phase circuit.
| Property | Value |
| Width in division units: | 2 |
| Calibrated: | yes |
| Pole type: | 1-phase |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| Accuracy class: | B |
| Maximum current (Imax): | 63 A |
| Nominal voltage (Un) NL: | 197 to 265 V |
| Pulse rate: | 0.001 to 10 Imp/kWh (kvarh) |
| Protection class (IP): | IP54 |
| Frequency: | 47 to 63 Hz |
| Tariff version: | Two-tariff |
| Tariff control: | external |
| Energy type: | Active and reactive power |
| Nominal current (In): | 10 A |
| Version: | Direct measurement |
| Measurement type load profile: | no |
| With lock code: | yes |
| Pulse type: | S0 |
| Number of positions: | 9 |
| Suitable for: | Purchase/delivery |
| Backstop: | yes |
| Approval: | National |
| Pulse output: | optical |
| Interface design: | without |
Features
Insert Module Type
Light switch covers
Maximum current (Imax)
63 A
Accuracy class
B
HAB
412080 EMDX³ 63A 1-ph. DA IA 2TE
Manufacturer
HAN
412080
GTIN
3414971413795
Version
Direct measurement
Implementation of the interface
Without
Width in pitch units
2
Frequency
47 to 63 Hz
Suitable for
Purchase/Delivery
Mounting type
REG
Nominal current (In)
10A
IP protection)
IP54
Permit
Domestic
