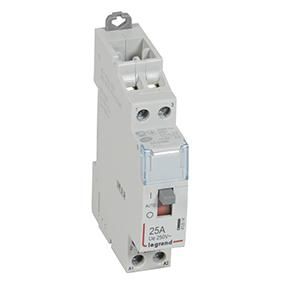

Legrand installation contactor CX3, coil voltage AC 24 V, 2-pole, design: 2 normally open contacts, rated operating current Ie 25 A/ 250 VAC, with manual switch. According to EN 61095, usage category AC-1/AC-7a and AC-3/AC-7b, installation contactors for switching loads such as lamp groups, motors and heaters, with labeling window, with switching status indicator, fastening to top hat rail EN 60715 using quick-locking fastening, attachment of auxiliary switches possible.
| Property | Value |
| Type of operating voltage: | AC |
| Degree of protection (IP): | IP2X |
| Max. incandescent lamp load: | 3000 W |
| Rated operating current: | 25 A |
| Rated operating voltage: | 250 V |
| Max. fluorescent lamp load (parallel compensated): | 1000 VA |
| Max. fluorescent lamp load (duo circuit): | 2200 VA |
| Max. Fluorescent lamp load: | 2100 VA |
| Additional equipment possible: | yes |
| Slider for manual switching: | yes |
| Type of actuating voltage: | AC |
| Installation depth: | 44 mm |
| Rated actuating voltage: | 20 to 26 V |
| Usage category: | 1 |
| Number of contacts as normally open: | 2 |
Features
Insert Module Type
Light switch covers
Rated operating current
25 A
Max. fluorescent lamp load
2100 VA
Manufacturer
HAN
412514
GTIN
3245064125147
Number of contacts as normally open
2
Rated operating voltage
250V
Installation depth
44 mm
IP protection)
IP2X
Additional equipment possible
Yes
