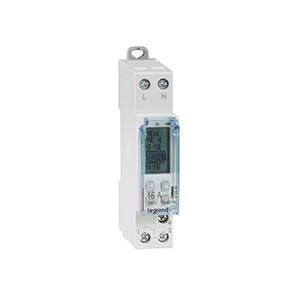

Legrand AlphaRex³ D11, single-module digital weekly timer, 1 channel, 28 switching programs, operating voltage 230 V 50/60 Hz, program creation directly on the device or with PC, AlphaSoft, PC adapter (412873) and data key (412872). Permanent ON/OFF, holiday program, random program, 1 hour test, PIN code lock, operating hours counter, background lighting, control input, automatic summer/winter time changeover, 5 year power reserve, accuracy +/- 0, 1 sec/day, shortest switching time: 1 min., zero-crossing switching. Switching output: 1 changeover contact.
| Property | Value |
| Width in division units: | 1 |
| Number of channels: | 1 |
| Protection class (IP): | IP20 |
| Supply voltage: | 230 V |
| Power reserve in years: | 5 |
| Weekly program: | yes |
| Annual program: | no |
| Mounting type: | DIN rail |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50 to 60 Hz |
| Accuracy per day: | 0.1 s |
| Text guidance in the display: | yes |
| 24 h program: | yes |
| 60 min program: | no |
| Automatic summer/winter time change: | yes |
| Shortest switching time channel 1: | 0.01666 min |
| Holiday program: | yes |
| Pulse program: | no |
| Cycle program: | yes |
| Astro program: | no |
| External button input: | no |
| Random program: | yes |
| Operating hours counter: | yes |
| Mains synchronous: | yes |
| Quartz controlled: | yes |
| Radio controlled: | no |
| Manual operation: | yes |
| Number of memory locations: | 28 |
| Switching preselection: | yes |
| Nominal switching current at 250 V AC: | 16 A |
| Potential-free switching contact: | yes |
| Width: | 17.8 mm |
| Height: | 83 mm |
| Depth: | 60 mm |
| External programming: | yes |
| Radio controlled (DCF77): | no |
| GPS: | no |
| With memory card: | no |
Features
Insert Module Type
Light switch covers
Type of voltage of the supply voltage
AC
Supply voltage
230 V
Number of channels
1
HAB
412669 ALPHAREX3 D11 230V
Manufacturer
HAN
412669
GTIN
3414971460447
Width
17.8 mm
Width in pitch units
1
Height
83 mm
Mounting type
DIN rail
IP protection)
IP20
Depth
60 mm
Supply voltage
230V
