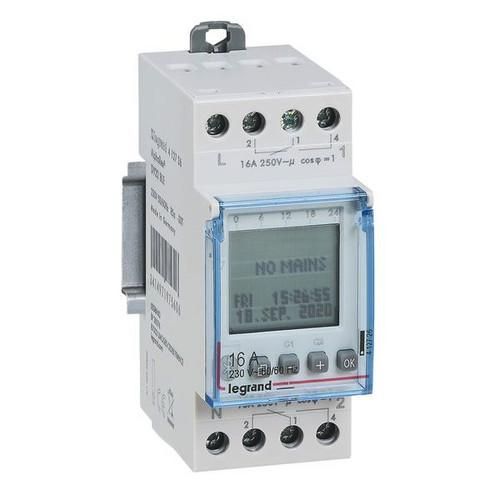

Legrand AlphaRex³ DY22 BLE, digital astro timer including annual and weekly timer, 2 channels, 84 switching programs per channel, operating voltage 230 V 50/60 Hz, program creation directly on the device or programmable directly via Bluetooth using the Legrand Time Switch app. No data key recording required. Astro function (sunsets/sunrises) can be combined with timer function. Permanent ON/OFF, random program, cycle function, 1 hour test, PIN code lock, operating hours counter, background lighting, automatic summer/winter time change, 5 year power reserve, accuracy +/- 0, 1 sec/day, shortest switching time: 1 sec, zero-crossing switching. Switching output: 2 changeover contacts.
| Property | Value |
| Width in division units: | 2 |
| Number of channels: | 2 |
| Protection class (IP): | IP20 |
| Supply voltage: | 230 V |
| Power reserve in years: | 5 |
| Weekly program: | yes |
| Annual program: | yes |
| Mounting type: | DIN rail |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50 to 60 Hz |
| Accuracy per day: | 0.1 s |
| Text guidance in the display: | yes |
| 24 h program: | yes |
| 60 min program: | no |
| Automatic summer/winter time change: | no |
| Shortest switching time channel 1: | 0.01666 min |
| Holiday program: | no |
| Pulse program: | no |
| Cycle program: | yes |
| Astro program: | yes |
| External button input: | yes |
| Random program: | yes |
| Operating hours counter: | yes |
| Mains synchronous: | yes |
| Quartz controlled: | yes |
| Radio controlled: | no |
| Shortest switching time channel 2: | 0.01666 min |
| Manual operation: | yes |
| Number of memory locations: | 56 |
| Switching preselection: | yes |
| Nominal switching current at 250 V AC: | 16 A |
| Potential-free switching contact: | yes |
| Width: | 35.6 mm |
| Height: | 83 mm |
| Depth: | 60 mm |
| External programming: | yes |
| Radio-controlled (DCF77): | no |
| GPS: | no |
| With Memory card: | no |
Features
Insert Module Type
Light switch covers
Type of voltage of the supply voltage
AC
Supply voltage
230 V
Number of channels
2
HAB
AlphaRex³ DY22 BLE 230VAC 2 channel
Manufacturer
HAN
412726
GTIN
3414971975606
Width
35.6 mm
Width in pitch units
2
Height
83 mm
Mounting type
DIN rail
IP protection)
IP20
Depth
60 mm
Supply voltage
230V
