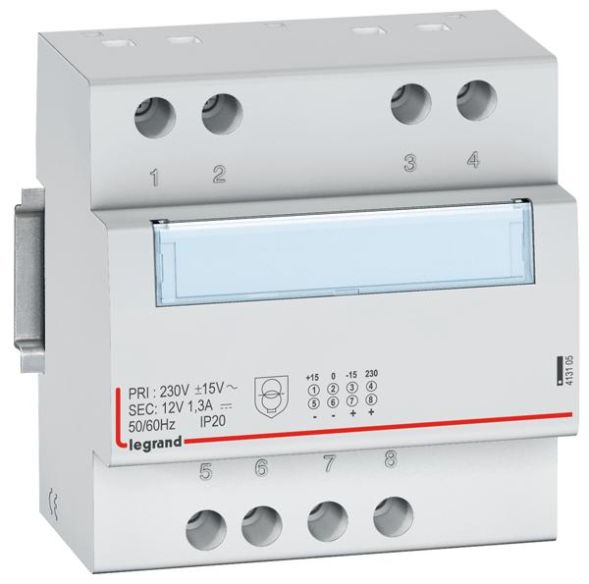

Legrand power supply 12V DC 1.3A, 5-module, supply voltage 230VAC, output voltage 12V DC 1.3 A, 15 W. Integrated short circuit and overload protection, fastening on top hat rail EN 60715 by means of quick-locking fastening.
| Property | Value |
| 1. Output voltage at DC: | 12 V |
| Design of the electrical connection: | Screw/spring connection |
| Output voltage adjustable: | no |
| Output voltage regulated: | yes |
| Rated supply voltage at AC 50 Hz: | 215 to 245 V |
| Rated supply voltage at AC 60 Hz: | 215 to 245 V |
| Width: | 89 mm |
| Direct mounting possible: | no |
| Suitable for series installation: | yes |
| Height: | 95 mm |
| Short-circuit proof: | no |
| Power output: | 15 W |
| Power consumption: | 8.7 VA |
| Max. Output current 1: | 1.25 A |
| Protection class (IP): | IP20 |
| Type of supply voltage: | AC |
| Stabilized: | yes |
| Depth: | 66 mm |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
Features
Insert Module Type
Light switch covers
Type of voltage of the supply voltage
AC
Short circuit proof
No
Power consumption
8.7 VA
Manufacturer
HAN
413105
GTIN
3245064131056
Design of the electrical connection
Screw/spring connection
Width
89 mm
Suitable for series installation
Yes
Height
95 mm
IP protection)
IP20
Depth
66 mm
Mounting rail possible
Yes
