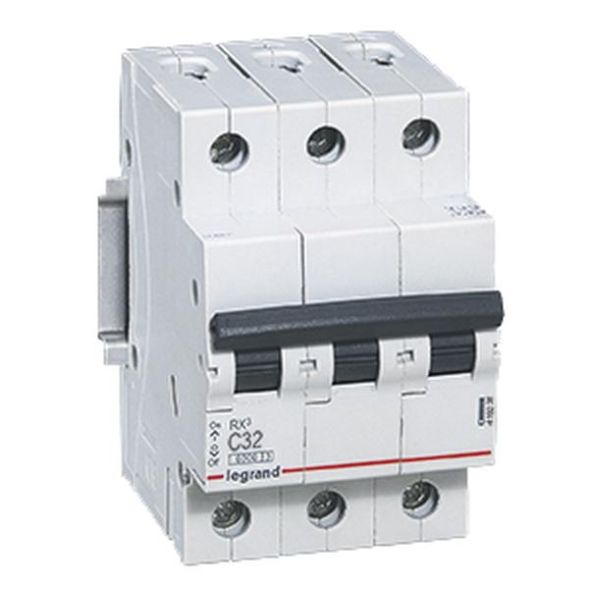

Legrand miniature circuit breaker RX3 according to EN 60898-1,0641-11, EN 60947-2, 3-pole, C characteristic, rated current In 32 A, rated switching capacity Icn 6 kA according to EN 60898-1, rated voltage Un 400 VAC, rated frequency 50/60 Hz, energy limitation class 3, fastening on top hat rail EN 60715 by means of a snap-in quick fastening, clear information on the front of each device, marking switch position indicator On/Off, with labeling field, attachment of auxiliary devices not possible. Circuit breakers with C characteristics are intended for line protection in devices with high inrush currents (e.g. motors and transformers).
| Property | Value |
| Tripping characteristic: | C |
| Rated current: | 32 A |
| Rated voltage: | 400 V |
| Type of voltage: | AC |
| Frequency: | 50 to 60 Hz |
| Width in pitch units: | 3 |
| Number of poles (total): | 3 |
| Energy limitation class: | 3 |
| Additional equipment possible: | no |
| Installation depth: | 44 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icn according to EN 60898 at 230 V: | 10 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 400 V: | 6 kA |
| Rated switching capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Pollution level: | 2 |
| Switching neutral conductor: | no |
| Number of protected poles: | 3 |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
419238
GTIN
3414970368157
Number of protected poles
3
Trigger characteristics
C
Rated insulation voltage Ui
500V
Rated switching capacity Icn according to EN 60898 at 230 V
10kA
Rated switching capacity Icn according to EN 60898 at 400 V
6kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V
6kA
Rated voltage
400V
Rated impulse withstand voltage Uimp
4kV
Rated current
32 A
Width in pitch units
3
Installation depth
44 mm
Energy limitation class
3
Frequency
50 to 60 Hz
Switching neutral conductor
No
Number of poles (total)
3
IP protection)
IP20
Voltage type
AC
Degree of contamination
2
Additional equipment possible
No
