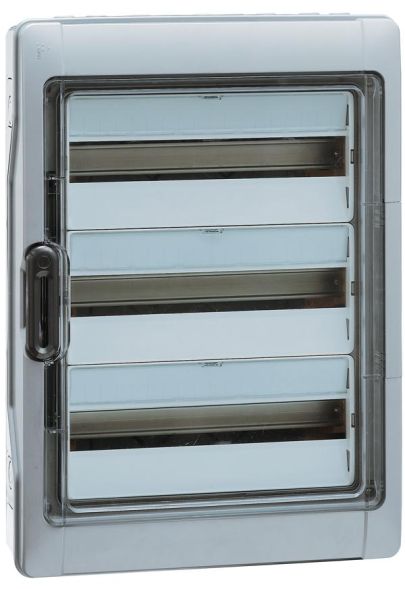

According to IEC/EN 62208, for the construction of installation distributors according to IEC/EN 61439-3, for devices up to 63A, protection class II, self-extinguishing: 650 °C, temperature resistance -20 °C to + 70 °C, transparent doors, can be hinged on both sides, doors can be retrofitted with lock Order No. 019 66, can be sealed with sealing set Order No. 019 68, with pre-punching for metric cable entry, including membrane entries, removable mounting frame from 2-row distributors, rail spacing 150 mm, including N and PE terminals except type 601932 without N terminal.
| Property | Value |
| Width in pitch units: | 12 |
| Number of rows: | 3 |
| Height: | 622 mm | >
| Width: | 340 mm |
| Depth: | 161 mm |
| Protection rating (IP): | IP65 |
| Color: | grey | Mounting type: | Surface-mounted |
| With lock: | yes |
| Transparent cover/door: | yes |
| Housing material: | Plastic |
| RAL number: | 7046 |
| DIN rail: | yes |
| Mounting option: | yes |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | Door |
| Cover version: | closed |
| Inner depth: | 48.5 mm |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
601983
GTIN
3245066019833
Cultivation option
Yes
Number of rows
3
Type of cover
Door
Cover design
Closed
Width
340 mm
Width in pitch units
12
DIN rail
Yes
EMC version
No
Color
Height
622 mm
Internal depth
48.5 mm
With mounting plate
No
With lock
Yes
Mounting type
Surface-mounted
RAL number
7046
IP protection)
IP65
Depth
161 mm
Transparent lid/door
Yes
Housing material
Plastic
