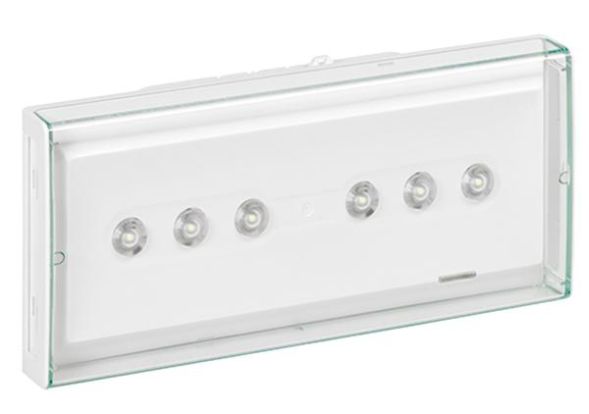

LED standby and permanent single battery lights with high-performance LEDs. The micro lens technology in the LEDs ensures optimal light distribution, plug-in terminals 2 × 2.5 mm2, protection class IP 42 and impact resistance IK 07, the two-part light consists of a mounting plate and a single battery light with plug-in terminals for mounting or dismantling the light without disconnecting the connecting cable using the clip system. Nominal operating time 1 and 3 hours, Ni-MH battery, recharge time 24 hours, charge monitoring using a green LED, supply voltage: 230 V +/-10%, 50/60 Hz Class II. Flush-mounted installation for ceiling and wall mounting possible with installation box (order no. 66170/061721). Standard safety lights with manual function test require the voltage to be switched off manually in order to test the safety light. This light can be operated in permanent or non-maintained mode, depending on the wiring.
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP42 |
| Protection class: | II |
| Voltage type: | AC |
| Length: | 285 mm |
| Width: | 125 mm |
| Height/depth: | 55 mm |
| Max. System performance: | 20 W |
| Battery type: | NiMh |
| Nominal operating time: | 3 h |
| Rated luminous flux according to IEC 62722-2-1: | 200 lm |
| Luminous flux in standby mode: | 120 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK07 |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | transparent plastic |
| With light source: | yes |
| Monitoring device: | without |
| Mounting type: | Wall mounting |
| Material of the housing: | Plastic |
| Suitable for marking type: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route lighting/marking |
| With pictogram: | no |
| Number of light heads: | 1 |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 147000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Number of poles: | 5 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | screw connection |
