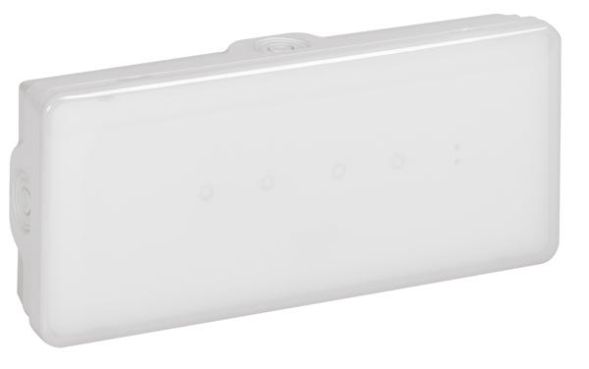

IP65 standard self-contained light in standby and maintained mode. Standard safety lights with manual function test require the voltage to be switched off manually in order to test the safety light. This light can be operated in maintained or standby mode depending on the wiring. Maintained / standby mode - 100 lm - 3h (LEDs).
| Feature | Value |
| Housing color: | gray |
| Protection rating (IP): | IP65 |
| Protection class: | II |
| Type of voltage: | AC |
| Color temperature: | 6000 K |
| Length: | 280 mm |
| Width: | 120 mm |
| Height/Depth: | 59.7 mm |
| Max. System performance: | 10 W |
| Battery type: | NiMh |
| Nominal operating time: | 3 h |
| Rated luminous flux according to IEC 62722-2-1: | 100 lm |
| Luminous flux in standby mode: | 100 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK07 |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| With light source: | yes |
| Monitoring device: | without |
| Mounting type: | Wall mounting |
| Material of the housing: | Plastic |
| Suitable for type of marking: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route lighting/marking |
| With pictogram: | no |
| Number of light heads: | 1 |
| LED nominal current at constant current: | 43 mA |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 147000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Number of poles: | 5 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | screw connection |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
661440
GTIN
3414970311979
Connection type
Screw connection
Rated lifetime L70/B50 at 25 °C
147000 hours
Rated luminous flux according to IEC 62722-2-1
100lm
Operating device
LED control gear current controlled
Width
120 mm
Color temperature
6000K
Version
Other
Function
Escape route lighting/marking
Housing color
Gray
Height/Depth
59.7 mm
LED nominal current at constant current
43mA
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Diffuser lens/optics/panel
Length
280 mm
Max. system performance
10W
With light source
Yes
Mounting type
Wall mounting
Nominal voltage
230V
Number of poles
5
Impact resistance
IK07
IP protection)
IP65
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
