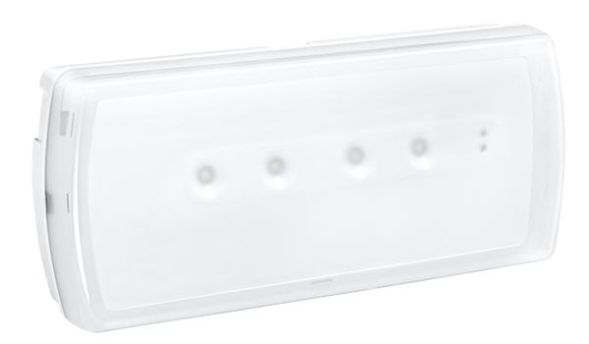

LED standby lights certified according to IEC and EN 60598-2-22, with high-performance LEDs. Screw terminals 2 x 2.5 mm2, protection class IP 42 and impact resistance IK 04, nominal operating time 1 and 3 hours, Ni-Cd or Ni-MH battery, recharge time 24 hours, charge monitoring via green LED, supply voltage: 230 V +/-10%, 50/60 Hz Class II, flush-mounted installation for ceiling and wall mounting with installation box (order no. 661720/061721) possible. Standard emergency lights with manual function test require manual shutdown of the voltage to test the emergency light.
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP42 |
| Protection class: | II |
| Voltage type: | AC |
| Color temperature: | 5700 K |
| Length: | 244 mm |
| Width: | 109 mm |
| Height/Depth: | 57.5 mm |
| Max. System performance: | 10 W |
| Battery type: | NiMh |
| Nominal operating time: | 3 h |
| Rated luminous flux according to IEC 62722-2-1: | 100 lm |
| Luminous flux in standby mode: | 100 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK04 |
| Socket: | other |
| Nominal voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| With light source: | yes |
| Monitoring device: | without |
| Mounting type: | Wall mounting |
| Material of the housing: | Plastic |
| Suitable for type of marking: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route lighting/marking |
| With pictogram: | no |
| Number of light heads: | 1 |
| LED nominal current at constant current: | 43 mA |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 147000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Number of poles: | 5 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | screw connection |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
661610
GTIN
3414970312112
Connection type
Screw connection
Rated lifetime L70/B50 at 25 °C
147000 hours
Rated luminous flux according to IEC 62722-2-1
100lm
Operating device
LED control gear current controlled
Width
109 mm
Color temperature
5700K
Version
Other
Function
Escape route lighting/marking
Housing color
White
Height/Depth
57.5 mm
LED nominal current at constant current
43mA
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Diffuser lens/optics/panel
Length
244 mm
Max. system performance
10W
With light source
Yes
Mounting type
Wall mounting
Nominal voltage
230V
Number of poles
5
Impact resistance
IK04
IP protection)
IP42
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
