Description

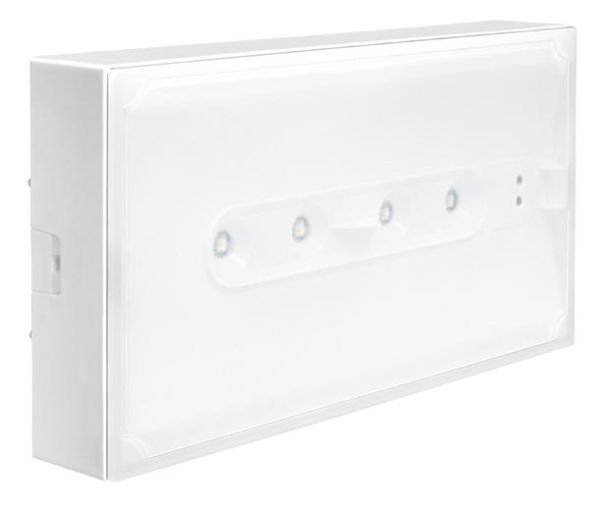

Standard emergency lights with manual function test require the voltage to be switched off manually in order to test the emergency light. This light can be operated in maintained or non-maintained mode depending on the wiring. Maintained/standby mode, 160 lm, 1 hour.
| Feature | Value |
| Housing color: | white |
| Protection rating (IP): | IP42 |
| Protection class: | II |
| Voltage type: | AC |
| Color temperature: | 6000 K |
| Length: | 210 mm |
| Width: | 110 mm |
| Height/Depth: | 41 mm |
| Max. System performance: | 16 W |
| Battery type: | NiCd |
| Nominal operating time: | 1 h |
| Rated luminous flux according to IEC 62722-2-1: | 160 lm |
| Luminous flux in standby mode: | 100 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK07 |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| With light source: | yes |
| Monitoring device: | without |
| Mounting type: | Wall mounting |
| Material of the housing: | Plastic |
| Suitable for type of marking: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route lighting/marking |
| With pictogram: | no |
| Number of light heads: | 1 |
| LED nominal current at constant current: | 70 mA |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 147000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Number of poles: | 5 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | screw connection |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
661632
GTIN
3414970312235
Connection type
Screw connection
Rated lifetime L70/B50 at 25 °C
147000 hours
Rated luminous flux according to IEC 62722-2-1
160lm
Operating device
LED control gear current controlled
Width
110 mm
Color temperature
6000K
Version
Other
Function
Escape route lighting/marking
Housing color
White
Height/Depth
41 mm
LED nominal current at constant current
70mA
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Diffuser lens/optics/panel
Length
210 mm
Max. system performance
16W
With light source
Yes
Mounting type
Wall mounting
Nominal voltage
230V
Number of poles
5
Impact resistance
IK07
IP protection)
IP42
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
