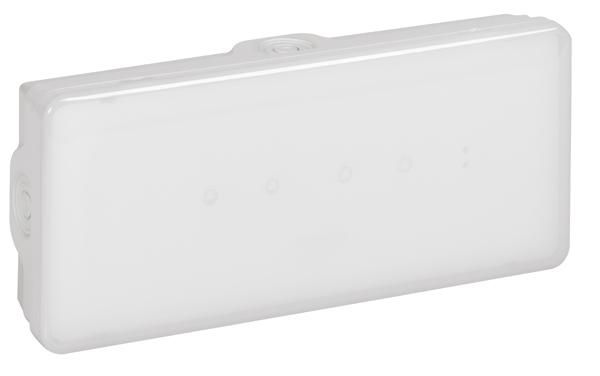

IP65 standard self-contained light in standby and maintained mode with auto-test and addressable. Addressable self-contained light with integrated self-test function. The result is displayed on the two signal LEDs (green = OK and yellow = DEFECTIVE). The lights can be operated either in maintained or standby mode. When using the monitoring center, the light must be addressed. Maintained / standby mode - 100 lm - 1h (LEDs).
| Feature | Value |
| Housing color: | gray |
| Protection rating (IP): | IP65 |
| Protection class: | II |
| Type of voltage: | AC |
| Color temperature: | 6000 K |
| Length: | 280 mm |
| Width: | 120 mm |
| Height/Depth: | 59.7 mm |
| Max. System performance: | 10 W |
| Battery type: | NiCd |
| Nominal operating time: | 1 h |
| Rated luminous flux according to IEC 62722-2-1: | 100 lm |
| Luminous flux in standby mode: | 100 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK07 |
| Socket: | other |
| Nominal voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| With light source: | yes |
| Monitoring device: | automatic self-test |
| Mounting type: | Wall mounting |
| Material of the housing: | Plastic |
| Suitable for type of marking: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route lighting/marking |
| With pictogram: | no |
| Number of light heads: | 1 |
| LED nominal current at constant current: | 43 mA |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 147000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Number of poles: | 5 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | screw connection |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
662431
GTIN
3414970312518
Connection type
Screw connection
Rated lifetime L70/B50 at 25 °C
147000 hours
Rated luminous flux according to IEC 62722-2-1
100lm
Operating device
LED control gear current controlled
Width
120 mm
Color temperature
6000K
Version
Other
Function
Escape route lighting/marking
Housing color
Gray
Height/Depth
59.7 mm
LED nominal current at constant current
43mA
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Diffuser lens/optics/panel
Length
280 mm
Max. system performance
10W
With light source
Yes
Mounting type
Wall mounting
Nominal voltage
230V
Number of poles
5
Impact resistance
IK07
IP protection)
IP65
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
