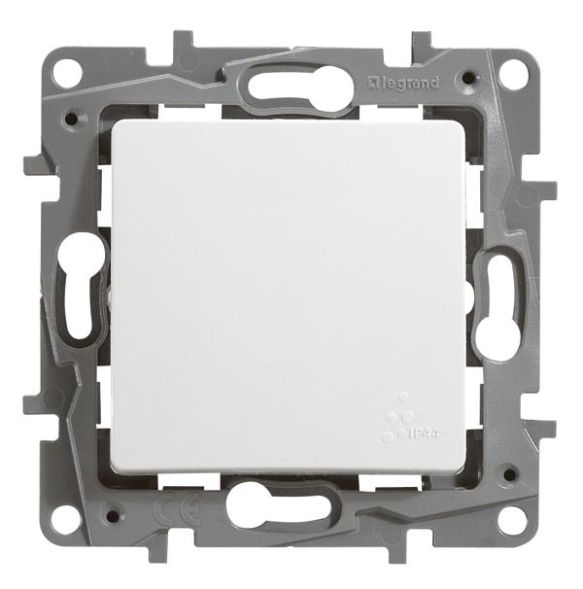

Inserts are supplied including a rocker/cover and protective cover. Fastening using screws or expanding claws - inserts for screw fastening can be retrofitted with expanding claws Order No. 6650 99. Connection via plug-in (SL) or screw terminals (SK).
| Property | Value |
| Color: | white |
| Design: | Single button |
| Suitable for protection class (IP): | IP44 |
| Operating mode: | Rocker |
| Mounting type: | Flush-mounted |
| Number of rocker switches: | 1 |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Base element with central cover plate |
| Feedback contact: | no |
| With lighting: | yes |
| Mounting type: | Screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9003 |
| Nominal voltage: | 250 V |
| Number of modules (with modular construction): | 2 |
| Print: | without |
| Rated current: | 6 A |
| Device width: | 75.8 mm |
| Device height: | 75.8 mm |
| Device depth: | 46.5 mm |
| Number of poles: | 2 |
| Transparent: | no |
| Antibacterial treatment: | no |
| With signal lamp: | yes |
| Min. depth of device box: | 40 mm |
Features
Insert Module Type
Light switch covers
Color
White
Feedback contact
No
Number of actuating rockers
1
With lighting
Yes
Manufacturer
HAN
664725
GTIN
3245066647258
Antibacterial treatment
No
Number of modules (for modular construction)
2
Imprint
Without
Version
Single button
Surface finish
Glittering
Operating mode
Seesaw
Mounting type
Screw fastening
Rated current
6A
Color
Suitable for protection class (IP)
IP44
Device width
75.8 mm
Device height
75.8 mm
Device depth
46.5 mm
Halogen free
Yes
Min. depth of the device box
40 mm
With signal lamp
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
Number of poles
2
RAL number (similar)
9003
Text field/label area
No
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
