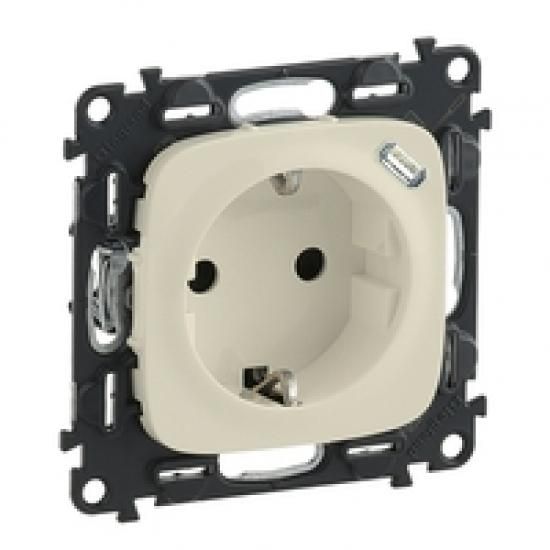

Valena Allure combination socket with increased contact protection includes a socket for 16A and a USB-C charging unit with 1.5A and 5V charging current, the insert is provided with plug-in terminals, which ensures quick connection of the conductors (Sl). For new installation or to replace an existing 1-way socket in a standard installation box, without changing the wiring. For charging tablets, smartphones, MP3 players, etc., maximum charging current of the USB socket: 1500 Ma. Color: almond white
| Property | Value |
| RAL number (similar): | 1013 |
| Number of units: | 2 |
| Color: | beige |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | other |
| Twisted central insert: | no |
| Print/marking: | other |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | other |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| Device width: | 75.8 mm |
| Device height: | 75.8 mm |
| Device depth: | 44.4 mm |
| Insulated installation: | no |
| With built-in USB power supply: | yes |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK04 |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| Number of active contacts (round): | 1 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 40 mm |
Features
Insert Module Type
Light switch covers
Color
White
Manufacturer
HAN
753006
GTIN
3414971363960
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
2
Number of phases
1
Number of active contacts (approx.)
1
Printing/marking
Other
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Other
Color
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP20
Device width
75.8 mm
Device height
75.8 mm
Device depth
44.4 mm
Halogen free
Yes
Insulated installation
No
Min. depth of the device box
40 mm
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
Yes
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
RAL number (similar)
1013
Impact resistance
IK04
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Other
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
