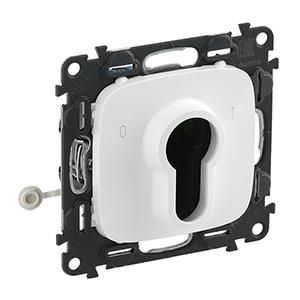

Valena Allure key switch for DIN half cylinder 2-pole, 10 A - 230 V~ with screw terminals. For use with DIN half profile cylinder (not included). Required installation depth: 45 mm, not suitable for surface-mounted housing. Color: Ultra white
| Property | Value |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Circuit type: | other |
| Operating type: | key |
| Number of rocker switches: | 1 |
| Mounting type: | flush-mounted |
| Push button: | no |
| Composition: | Base element with central cover plate |
| Fastening type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9003 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 6 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | screw terminal |
| Lighting: | no |
| Lighting type: | other |
| Lighting function: | other |
| Rated current: | 6 A |
| Installation depth: | 21.6 mm |
| Device depth: | 45.7 mm |
| Device width: | 74.7 mm |
| Device height: | 74.7 mm |
| With mounting plate: | yes |
| Text field/labeling area: | no |
| Min. Depth of the device box: | 30 mm |
Features
Insert Module Type
Light switch covers
Color
White
Feedback contact
No
Number of actuating rockers
1
Circuit type
Other
Lighting
No
Switching current for fluorescent lamps
6 AX
Push button
No
Washing machine switch
No
Lighting function
Other
Manufacturer
HAN
755235
GTIN
3414970483393
Connection type
Screw terminal
Surface finish
Glittering
Operating mode
Key
Mounting type
Claw/screw fastening
Rated current
6A
Installation depth
21.6 mm
Color
Suitable for protection class (IP)
IP20
Device width
74.7 mm
Device height
74.7 mm
Device depth
45.7 mm
Halogen free
Yes
Min. depth of the device box
30 mm
With mounting plate
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
RAL number (similar)
9003
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
