Description
Features
Reviews

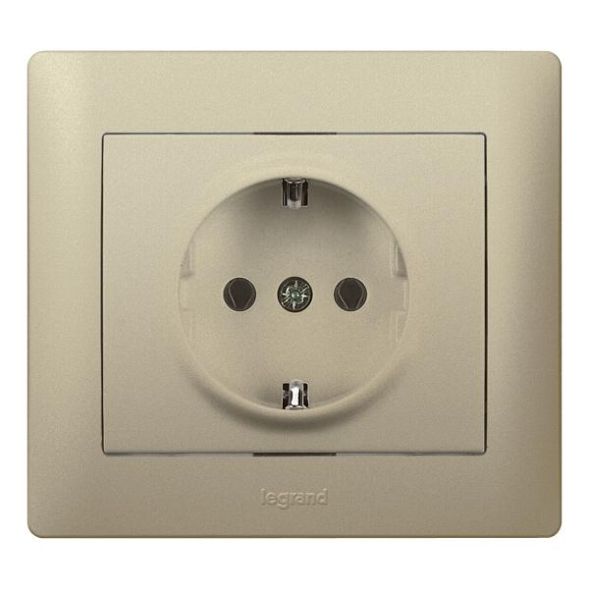

Socket (SL) increased contact protection Galea Titanium
| Property | Value |
| Number of units: | 1 |
| Color: | Titanium |
| Suitable for protection class (IP): | IP20 |
| Rated voltage: | 250 V |
| Rated current: | 16 A |
| Lockable: | no |
| With increased Contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Print/marking: | other |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Fastening type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | painted |
| Surface finish: | glossy |
| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 42 mm |
| Insulated installation: | no |
| With loop-through function: | yes |
| With On/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| Impact resistance: | IK02 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 1 |
| With Signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
Insert Module Type
Light switch covers
Manufacturer
HAN
771463
GTIN
3245067714638
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of phases
1
Number of active contacts (approx.)
1
Printing/marking
Other
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
71 mm
Device depth
42 mm
Halogen free
Yes
Insulated installation
No
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Painted
Impact resistance
IK02
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
