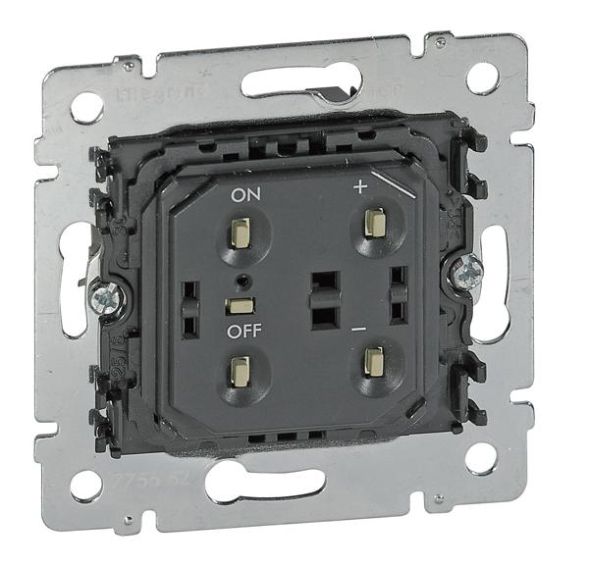

Phase leading/trailing edge 40-400W with automatic load detection - extension operation (switching and dimming) with several conventional buttons (cable length max. 50 meters) - 3 operating modes (standard, light value, snooze). When the 33% light value is called up, the snooze function starts: within an hour the light is completely dimmed and switched off. - Freely adjustable memory function, i.e. the last light value switched on is activated when the light is switched on again. - When the power returns (power failure), the last set light value is activated. Phase leading/trailing edge 40-400W for incandescent and HV halogen lamps, 40-400VA for LV halogen lamps with conventional (iron core) or electronic transformer. Load type: R, L, C (not suitable for mixed load operation L + C) - 2-wire connection (without neutral conductor). For use with cover order no. 77xx 86
| Property | Value |
| Mounting type: | Flush-mounted |
| Suitable for protection class (IP): | IP2X |
| Halogen-free: | yes |
| Composition: | Basic element |
| Load type: | universal |
| Series dimmer: | no |
| Extension input: | yes |
| Light value memory: | yes |
| Can be used with button: | yes |
| Can be used with motion detector: | no |
| Can be used with presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | Fastening with screw |
| Material: | other |
| Material quality: | other |
| Surface: | other |
| Surface finish: | matt |
| Frequency: | 50 Hz |
| Transparent: | no |
| App control via Bluetooth: | no |
