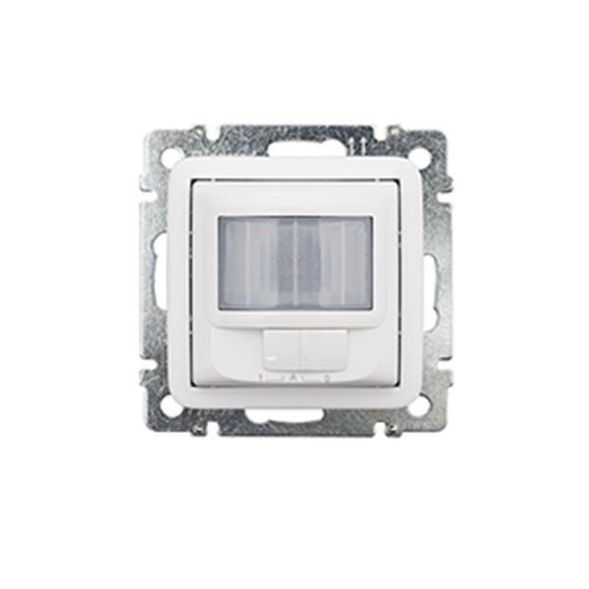

2-wire motion detector CREO KOMFORT 2-wire connection (without N-wire) with screw terminals, AUTOMATIC operation, detection range: 120°, detection range: 8 m fixed, brightness threshold: 5 1275 lux, switch-off delay: 10 sec. - 10 min., optimal installation height: 1.1 meters, suitable for the following load types: incandescent and HV halogen lamps: 3 - 250 W LEDs, fluorescent and compact fluorescent lamps and LV halogen lamps with electronic or conventional ballast: 3 - 250 VA LED or compact fluorescent lamps: 3 - 100 W with sensors connected in parallel (max. 2)
| Property | Value |
| Depth: | 34 mm |
| Width: | 71 mm |
| Height: | 71 mm |
| Design: | motion detector |
| Color: | white |
| Rated voltage: | 230 V |
| RAL number (similar): | 9003 |
| Material: | plastic |
| Mounting type: | flush-mounted |
| Response brightness: | 5 to 1275 lx |
| Protection class (IP): | IP41 |
| Max. switching capacity: | 250 W |
| Voltage type: | AC |
| Max. range to one side: | 6 m |
| Min. duty cycle: | 10 s |
| Max. Duty cycle: | 10 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -5 to 45 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | no |
| Max. Frontal range: | 8 m |
| Sensor type: | passive infrared |
| Optimal installation height: | 1.2 m |
| Surface finish: | glossy |
| Surface: | painted |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 6 m |
| Number of switching zones: | 1 |
| Horizontal detection angle: | 120 ° |
| Frequency: | 47 to 63 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Connection type: | Screw terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK04 |
| Installation depth: | 34 mm |
Features
Insert Module Type
Light switch covers
Color
White
Bridging switch
No
With signal unit
No
Number of switching zones
1
Response brightness
5 to 1275 lx
Forced shutdown
No
Manufacturer
HAN
775772
GTIN
3414971010918
Dimming function with dimming insert
No
Alarm function
No
Connection type
Screw terminal
Response sensitivity adjustable
No
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Glittering
Width
71 mm
Installation depth
34 mm
Detection field diameter on floor
6m
Detection angle horizontal
120°
Color
Remote controllable
No
Frequency
47 to 63 Hz
Suitable for C-load
Yes
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
71 mm
Constant light control
No
Max. duty cycle
10mins
Max. range frontal
8m
Max. range to one side
6m
Max. switching capacity
250W
Min. duty cycle
10s
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Extension input
No
Nominal voltage
230V
Surface
Painted
Optimal mounting height
1.2m
RAL number (similar)
9003
Impact resistance
IK04
IP protection)
IP41
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
No
Temperature
-5 to 45 °C
Depth
34 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
No
Networkable
No
Material
Plastic
Material quality
Thermoplastic
