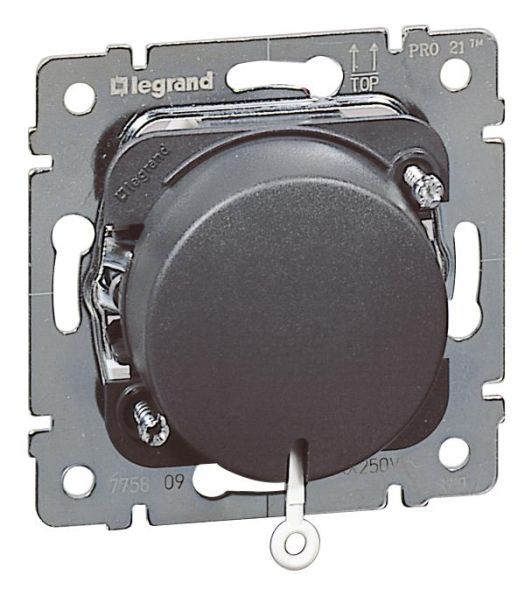

Insert pull switch universal off/change 1-pole 6AX/250V~
| Property | Value |
| Color: | gray |
| Suitable for protection class (IP): | IP21 |
| Circuit type: | Changeover switch |
| Operating type: | Pull cord |
| Number of actuating rockers: | 1 |
| Mounting type: | Flush-mounted |
| Push button: | no |
| Composition: | Base element with central cover plate |
| Fastening type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 7016 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 6 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | other |
| Lighting: | no |
| Lighting type: | other |
| Lighting function: | other |
| Rated current: | 6 A |
| Installation depth: | 21.5 mm |
| Device depth: | 45 mm |
| Device width: | 71 mm |
| Device height: | 71 mm |
| With mounting plate: | yes |
| Text field/labeling area: | no |
| Min. Depth of the device box: | 30 mm |
Features
Insert Module Type
Light switch covers
Feedback contact
No
Number of actuating rockers
1
Circuit type
Changeover switch
Lighting
No
Switching current for fluorescent lamps
6 AX
Push button
No
Washing machine switch
No
Lighting function
Other
Manufacturer
HAN
775809
GTIN
3245067758090
Connection type
Other
Surface finish
Frosted
Operating mode
Pull cord
Mounting type
Claw/screw fastening
Rated current
6A
Installation depth
21.5 mm
Color
Suitable for protection class (IP)
IP21
Device width
71 mm
Device height
71 mm
Device depth
45 mm
Halogen free
Yes
Min. depth of the device box
30 mm
With mounting plate
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
RAL number (similar)
7016
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
