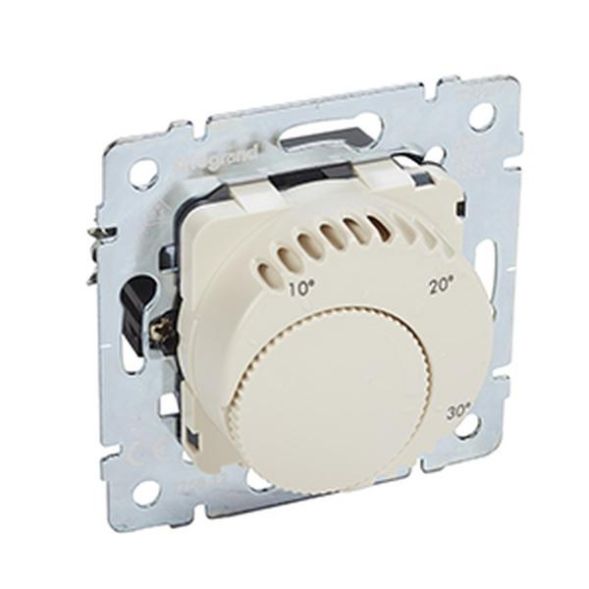

Bimetal thermostat with thermal feedback. Temperature range: +5 to +30°, range can be restricted using the setting knob, switching output: 1 changeover contact, switching current: 5 A at cos= 1.2 A at cos= 0.6. Color: almond white
| Property | Value |
| Type of power supply: | 230 V AC |
| Mounting type: | Flush-mounted |
| Protection class (IP): | IP30 |
| RAL number: | 1040 |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 47 mm |
| Heating: | yes |
| Number of heating outputs: | 1 |
| Number of cooling outputs: | 1 |
| With display: | no |
| Operation: | Rotary |
| Color: | beige |
| Connection: | three-/four-wire |
| With receiver: | no |
| External sensor: | no |
| Thermal feedback: | without |
| Control characteristics: | other |
| Difference value: | 2 K |
| Difference adjustable: | no |
| Temperature readable: | no |
| With noise level display: | no |
| Sensor design: | other |
| Number of modules (with modular design): | 1 |
| With drinking water circuit: | no |
| Max. voltage of contacts: | 250 V |
| Max. contact load: | 5 A |
| Explosion-proof: | no |
Features
Insert Module Type
Light switch covers
Color
White
Operation
Turn
Sensor/sensor design
Other
Temperature can be read
No
Manufacturer
HAN
775812
GTIN
4010957758127
Number of modules (for modular construction)
1
Width
71 mm
Explosion-proof
No
Color
Height
71 mm
With display
No
Mounting type
Flush-mounted
RAL number
1040
IP protection)
IP30
Depth
47 mm
