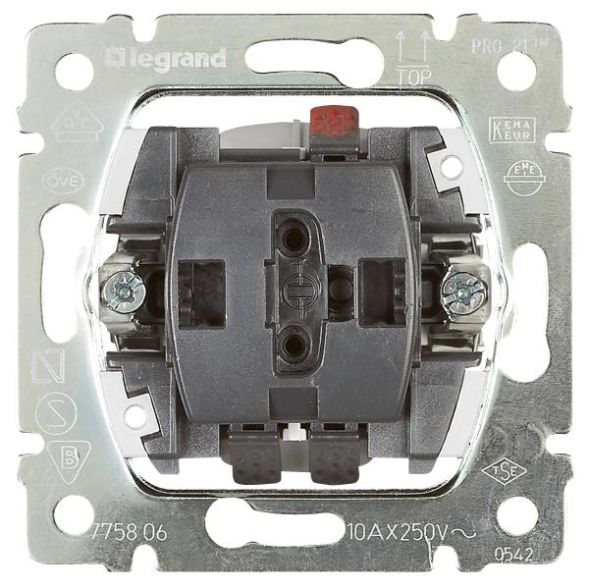

With N-terminal and independent potential-free signal contact. Equipped with glow lamp Order No. 7758 98, orange glow
| Property | Value |
| Color: | gray |
| Design: | Single button |
| Suitable for protection class (IP): | IP21 |
| Operating mode: | Rocker |
| Mounting type: | Flush-mounted |
| Number of rocker switches: | 1 |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Basic element |
| Feedback contact: | no |
| With lighting: | yes |
| Fastening type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 7016 |
| Nominal voltage: | 250 V |
| Number of modules (with modular design): | 2 |
| Print: | without |
| Rated current: | 10 A |
| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 33 mm |
| Number of poles: | 1 |
| Transparent: | no |
| Antibacterial treatment: | no |
| With signal lamp: | yes |
| Min. depth of device box: | 40 mm |
Features
Insert Module Type
Light switch covers
Feedback contact
No
Number of actuating rockers
1
With lighting
Yes
Manufacturer
HAN
775817
GTIN
3245067758175
Antibacterial treatment
No
Number of modules (for modular construction)
2
Imprint
Without
Version
Single button
Surface finish
Frosted
Operating mode
Seesaw
Mounting type
Claw/screw fastening
Rated current
10A
Color
Suitable for protection class (IP)
IP21
Device width
71 mm
Device height
71 mm
Device depth
33 mm
Halogen free
Yes
Min. depth of the device box
40 mm
With signal lamp
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
Number of poles
1
RAL number (similar)
7016
Text field/label area
No
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Basic element
