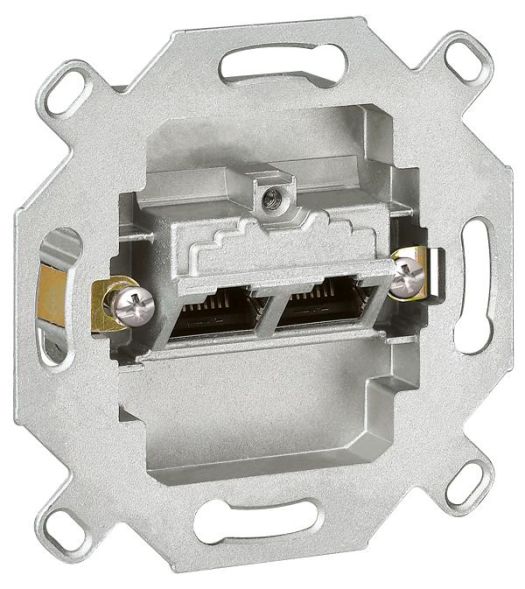

2-way, with 8-pin connector face, 2x8 shielded connection contacts. Color code for assignment according to EIA/TIA 568A. Color: ultra white
| Property | Value |
| Category: | 6 |
| Surface-mounted: | no |
| Mounting type: | screws |
| Outlet direction: | angled |
| Sockets shielded: | yes |
| Duct installation: | no |
| Connector type: | RJ45 8(8) |
| Suitable for number of sockets/couplings: | 2 |
| Color coding: | yes |
| Connection type: | 110 |
| Separate earthing connection: | no |
| Floor tank/underfloor installation: | no |
| With text field: | no |
| Separate cable strain relief: | no |
| With sockets/couplings: | yes |
| Color: | white |
| With dust protection: | no |
| Mounting type shield connection: | screw |
| Composition: | base element |
| Device width: | 70 mm |
| Device height: | 65 mm |
| Device depth: | 39 mm |
Features
Insert Module Type
Light switch covers
Color
White
With text field
No
Category
6
Connector type
RJ45 8(8)
Manufacturer
HAN
775976
GTIN
3245067759769
Connection type
110
Outlet direction
Aslant
Mounting type
Screw
Shielded sockets
Yes
Color
Suitable for number of sockets/couplings
2
Device width
70 mm
Device height
65 mm
Device depth
39 mm
With bushings/couplings
Yes
With dust protection
No
Compilation
Basic element
