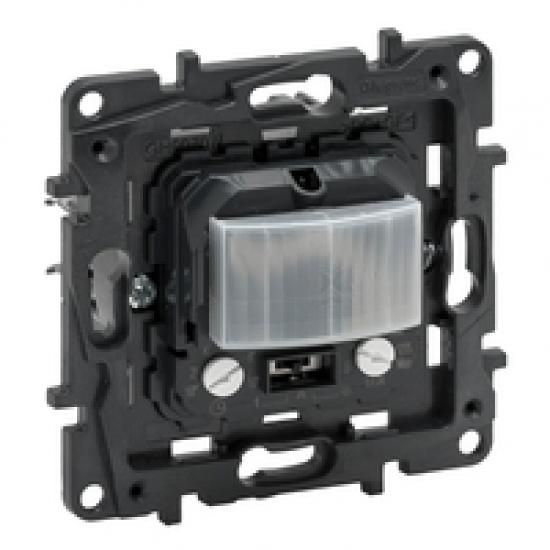

The Niloe Step inserts are suitable for spreading claws and screw fastening and are supplied with a red dust cover. Can be used for connecting rigid and flexible conductors using plug-in (SL) or screw terminals (SK). To be completed with the Niloe Step cover frame. Niloe Step motion detector with 2-conductor connection (without N-conductor) without manual operation . Detection range: 120° . Detection range: 8 m fixed . Brightness threshold: 5 -1275 lux . Switch-off delay: 10 sec.-10 min. Suitable for the following load types: . Incandescent and HV halogen lamps: 3 -250 W . LEDs, fluorescent and compact fluorescent lamps and NV halogen lamps with electronic or conventional ballast: 3 -250 Va . LED or compact fluorescent lamps: 3 -100 W. Parallel connection of several motion detectors possible (max. 2 additional sensors). The settings are made using a potentiometer.
| Property | Value |
| Depth: | 51.5 mm |
| Width: | 75.8 mm |
| Height: | 75.8 mm |
| Design: | Motion detector |
| Color: | other |
| Rated voltage: | 230 V |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Protection class (IP): | IP20 |
| Max. switching capacity: | 250 W |
| Voltage type: | AC |
| Max. range to one side: | 6 m |
| Min. duty cycle: | 600 s |
| Max. Duty cycle: | 10 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -5 to 45 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range, frontal: | 8 m |
| Max. Inrush current: | 0.05 A |
| Optimal installation height: | 1.2 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 6 m |
| Control current: | 0.05 mA |
| Horizontal detection angle: | 130 to 180 ° |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| With DALI interface: | no |
| Extension input: | yes |
| Connection type: | screw terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK02 |
| Installation depth: | 30.9 mm |
