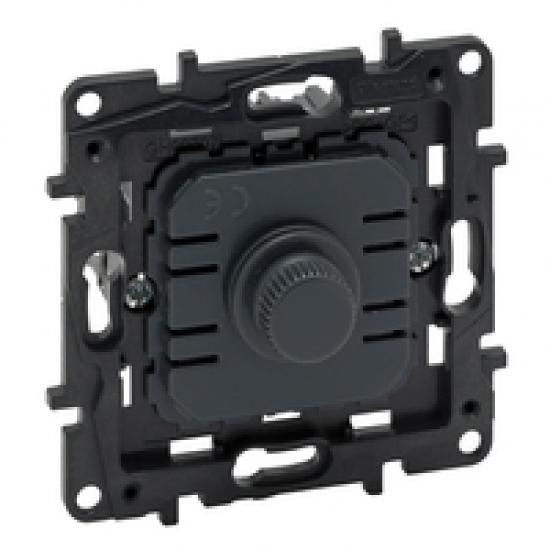

The Niloe Step inserts are suitable for expansion claw and screw fastening and are supplied with a red dust cover. Can be used for connecting rigid and flexible conductors using plug-in (SL) or screw terminals (SK). To be completed with cover frames from Niloe Step. Universal rotary dimmer 300 W without neutral conductor, leading/trailing edge, 5 - 300 W, 2-wire connection (without N-wire) with screw terminals - Extension operation (switching and dimming) using a conventional unlit normally open button (max. cable length 50 m) - Soft start/soft stop to protect the bulbs. Suitable for the following dimmable bulbs: - Incandescent and HV halogen lamps: 5 - 300 W - LV halogen lamps with electronic or conventional transformer: 5 - 300 VA - Dimmable LED or compact fluorescent lamps: 5 - 75 W (max. 10 lamps)
| Feature | Value |
| Device height: | 75.8 mm |
| Device width: | 75.8 mm |
| Device depth: | 51.85 mm |
| Connection type: | Screw terminal |
| Wire cross section: | 2.5 mm² |
| Mounting type: | Flush-mounted |
| Nominal voltage: | 100 to 240 V |
| Suitable for protection class (IP): | IP40 |
| Operating method: | Rotary/push button |
| Halogen-free: | yes |
| Composition: | Base element with central cover plate |
| Load type: | universal |
| Series dimmer: | no |
| Extension input: | yes |
| Light value memory: | yes |
| Can be used with button: | yes |
| Can be used with motion detector: | no |
| Can be used with presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Frequency: | 50 to 60 Hz |
| Control voltage: | 90 to 254 V |
| Transparent: | no |
| App control via Bluetooth: | no |
| Impact resistance: | IK02 |
