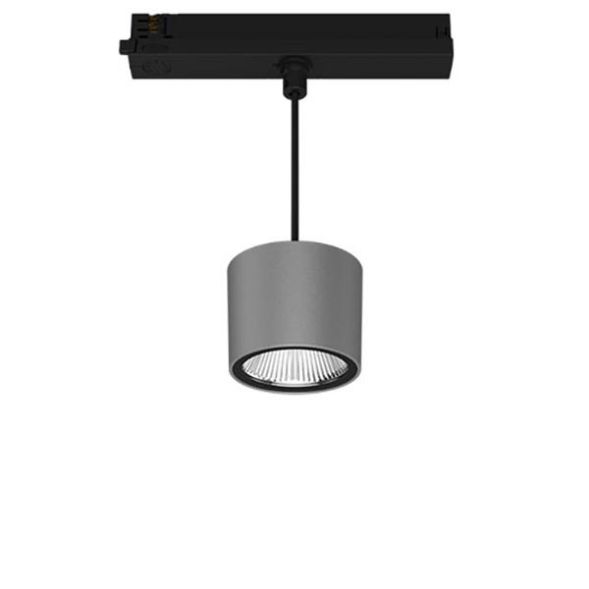

Pendant luminaire with slightly conical light head, easy to maintain, no UV and heat radiation, anti-glare shield and anti-glare decorative ring available as accessories, light head made of die-cast aluminum, innovative heat management with form-integrated passive cooling, high-performance mirror reflector made of aluminum with precise symmetrical beam characteristics for optimal light output and glare control, internal thermoplastic front ring in black, black cable suspension (length: 1000 mm, other cable lengths on request), clear protective glass, 3-phase track adapter with integrated DALI control gear
| Property | Value |
| Light source: | LED Spot / CRI 90 / 2700 K |
| Service life: | L90 50,000 hL80 100,000 hL80 B20 50,000 h |
| Luminaire luminous flux: | 2830lm |
| Beam angle: | 15° |
| System power: | 30W |
| System efficiency: | 94.33lm/W |
| Module efficiency: | 121.29lm/W |
| Energy efficiency class: | A+ |
| UGR 4H/8H 70/50/20: | 18.7/18.7 (C0/C90) |
| Supply voltage | 220 - 240 V / 50 Hz |
| Protection class: | II |
| Protection type: | IP20 |
| Standards: | CE |
| Weight: | 0.74kg |
| Diameter light head: | 85mm |
| Height: | 71 mm |
| Outer diameter: | 85 mm |
| Colors: | black, white, silver |
Features
HAB
ORYO-P 203.10.927.15/DALI silver
Manufacturer
HAN
664654
GTIN
4043544737892
Beam angle
15°
Outer diameter
85 mm
Diameter light head
85 mm
Energy efficiency class
A+
Weight
0.74 kg
Height
71 mm
Lifespan
L90 50,000 hL80 100,000 hL80 B20 50,000 h
Luminaire luminous flux
2830lm
Lamps
LED Spot / CRI 90 / 2700 K
Module efficiency
121.29lm/W
Standards
CE
Protection class
IP20
Protection class
II
System efficiency
94.33lm/W
System performance
30W
UGR4H/8H70/50/20
18.7/18.7 (C0/C90)
