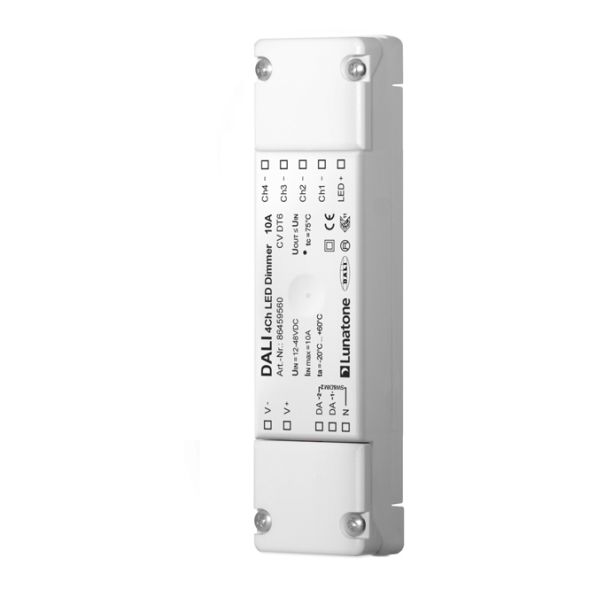

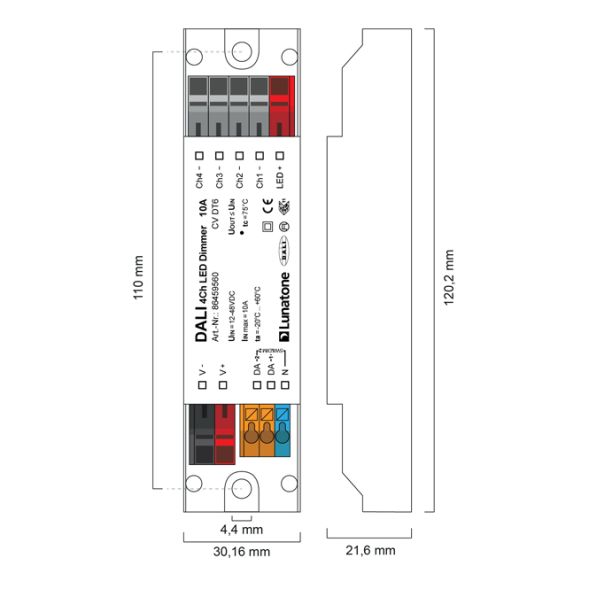

![CDATA[DALI LED dimmer (CV) for ceiling installation with 4 separately controllable channels. Each channel has its own DALI address. Supports operating modes: Colour&Dim for RGB and RGBW lights and SwitchDim2 for control via 2 button inputs without DALI. Input voltage: 12-48V DC, max. connection current: 16A, 4 PWM outputs (16 bit). Dimming range: 0.1-100%, switchable PWM frequency. Configuration via PC software DALI Cockpit and DALI USB interface. Technical data: Input voltage: 12-48VDC, Max. connection current: 16A, Control input: DALI DT6 / SwitchDim2, Max. DALI addresses: DT6 = 4 / Colour&Dim = 2, Max. cable cross-section: 2.5 mm² / DALI&SwitchDim 1.5 mm². Ceiling-mounted version, ambient temperature: -20 to +60°C, protection class: IP20, dimensions (LxWxH): 120 x 30 x 22 mm.]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
9010342011856
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Size of connection terminal in mm2
2.50
Wi-Fi
No
Zigbee
No
active power measurement
No
Connection type CC
-
Fan coil
No
Louvre
No
Nominal voltage outputs
12 - 48 V DC
Output current in mA
10,000
Switching
Yes
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
DALI Device Type
DT6
Gira One
No
Heating
No
JUNG HOME
No
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
No
On-site/manual operation
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Color control
-
Different phases can be connected
No
Division units
-
Manufacturer type
DALI 4Ch CV10A
Output power in W
0.00
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
Modbus RTU
No
Parallel operation of channels possible
No
DALI
Yes
Class
dimming actuators
Dimming process
PWM constant voltage CV
Day/night function
No
Dimming
Yes
Free@home
No
HAN
86459560
Manufacturer
LUNATONE
GTIN
9010342011856
Number of outputs
4
Mounting type
ceiling-mounted
