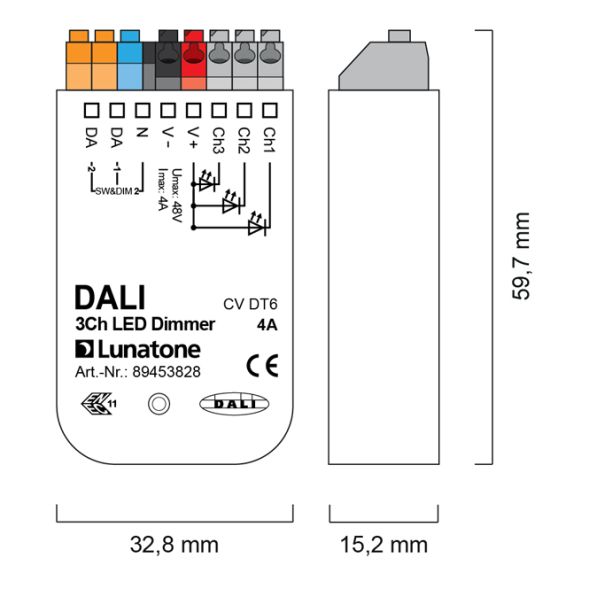

![CDATA[DALI LED dimmer (CV) with 3 separately controllable channels, for installation in boxes/lights. Each channel has its own DALI address. Alternative operating modes to DT6 control: Colour&Dim (controlling RGB lights) and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage: 12V to 48V DC, max. connection current 8A, 3 PWM outputs (16 bit). Product features: -3 channel LED dimmer -for controlling constant voltage LED modules -dimming range from 0.1-100% -the max. connection current can be distributed as desired across the channels -switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) -configuration via PC software DALI cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 8A Control input: DALI DT6/SwitchDim2 (mains voltage) Number of DALI addresses: DT6=3/Colour&Dim=2 Max. cable cross-section: 1.5mm² Variant: box/luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 59x33x15mm]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
9010342011757
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Size of connection terminal in mm2
2.50
Wi-Fi
No
Zigbee
No
active power measurement
No
Connection type CC
-
Fan coil
No
Louvre
No
Nominal voltage outputs
12 - 48 V DC
Output current in mA
4000
Switching
N/A
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
DALI Device Type
DT6
Gira One
No
Heating
No
JUNG HOME
No
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
No
On-site/manual operation
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Color control
-
Different phases can be connected
No
Division units
-
Manufacturer type
DALI 3Ch CV4A
Output power in W
0.00
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
Modbus RTU
No
Parallel operation of channels possible
No
DALI
Yes
Class
dimming actuators
Dimming process
PWM constant voltage CV
Day/night function
No
Dimming
Yes
Free@home
No
HAN
89453828
Manufacturer
LUNATONE
GTIN
9010342011757
Number of outputs
3
Mounting type
flush-mounted
