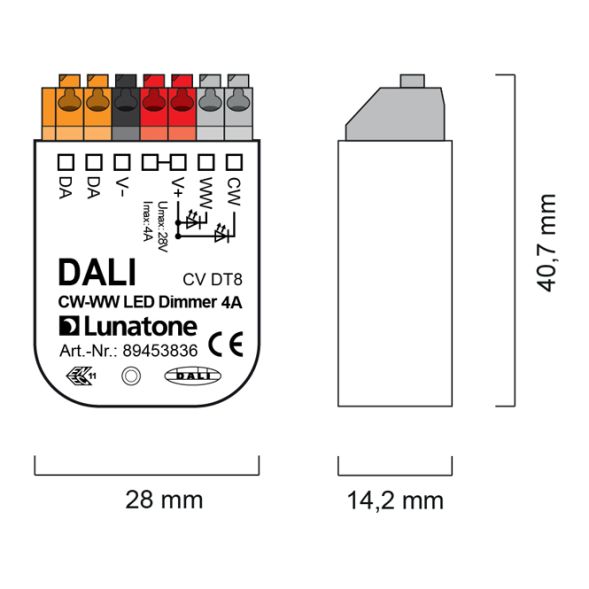

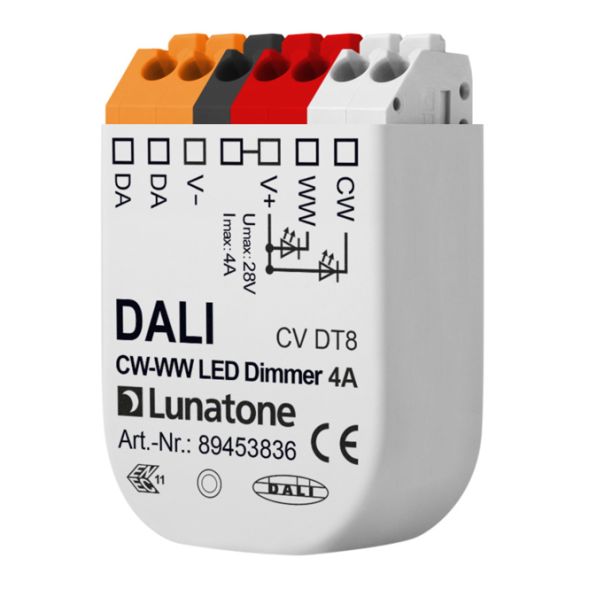

![CDATA[The LUNATONE 89453836 DALI DT8 CW-WW LED Dimmer CV controls constant voltage LED modules with cold white-warm white control and DT8 or Balance&Dim operating mode. DT8 enables brightness and color control via one DALI address, Balance&Dim via two. With SwitchDim2, brightness and color can also be controlled without DALI. PWM frequency and supply voltage are adjustable. Low standby losses, high efficiency. Configuration via DALICockpit and USB interface. IP20 housing. Dimensions: 40 mm x 28 mm x 15 mm, weight: 11 g.]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
9010342011986
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Size of connection terminal in mm2
2.50
Wi-Fi
No
Zigbee
No
active power measurement
No
Connection type CC
-
Fan coil
No
Louvre
No
Nominal voltage outputs
12 - 48 V DC
Output current in mA
4000
Switching
N/A
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
DALI Device Type
DT8
Gira One
No
Heating
No
JUNG HOME
No
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
No
On-site/manual operation
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Color control
Tunable White
Different phases can be connected
No
Division units
-
Manufacturer type
DALI DT8 CW-WW CV4A
Output power in W
0.00
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
Modbus RTU
No
Parallel operation of channels possible
No
DALI
Yes
Class
dimming actuators
Dimming process
PWM constant voltage CV
Day/night function
No
Dimming
Yes
Free@home
No
HAN
89453836
Manufacturer
LUNATONE
GTIN
9010342011986
Number of outputs
2
Mounting type
flush-mounted
