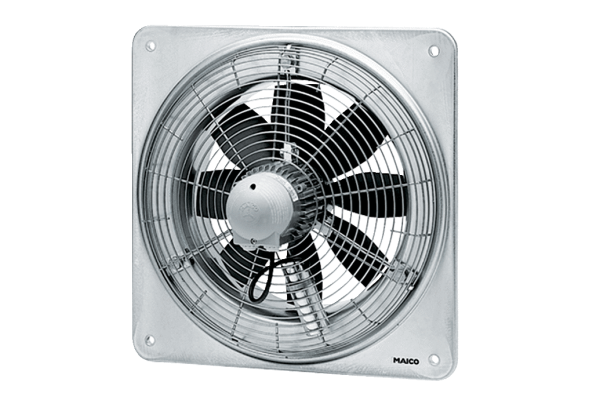

Maico 0083.0114 Fan EZQ 35/4 B

AC version: Axial wall fan with square wall plate, in AC version. Brief description: Protective grille on the suction side, contact protection in accordance with DIN EN ISO 13857. 8-blade impellers made of glass fiber reinforced polyamide. Thermal overload protection as standard. Fans meet the requirements of the European Ecodesign Regulation (EC) No. 327/2011 Directive 2009/125/EC. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High ventilation-side efficiency, low operating noise. Increased longevity thanks to high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Reversible operation of the fans possible. Customer-specific special voltages available as special versions on request and for an additional charge. Installation for ventilation and exhaust ventilation possible in any position. Direction of flow: The direction of flow is marked. Standard exhaust air operation, direction of flow through motor suction. AC motor: Asynchronous motor. Not suitable for conveying water vapor-saturated air. Rated voltage 230 V, 50 Hz. Fans ... B: Capacitor motors with operating capacitor on the protective grille or on the wall sleeve, protection class IP 55. Fans ... D: Capacitor motors with operating capacitor in the terminal box, protection class IP 54. Fans ... E: Shaded pole motors, protection class IP 54. Speed controllable. Exception for types EZQ 45/6 B and EZS 45/6 B. Devices can be continuously controlled with an optional speed controller or they can be switched in stages with an optional 5-stage transformer. Reversible. Exception for fans with shaded pole motor (... E). Reversing operation: The volume flow is reduced by approx. 35% in the event of an abnormal direction of flow. Thermal overload protection as standard. Electrical connection: On the terminal block in the end cover of the motor. Safety instructions: The fan may only be operated if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. with a Maico protective grille SG. Article: EZQ 35/4 B, Design: Square wall plate, Delivery volume: 2810 m3/h, Delivery volumeNominal: 1870 m3/h / in opt. Efficiency, Pressure pfs, Nominal: 70 Pa - in opt. Efficiency, Speed nNominal: 1390 1/min - in opt. Efficiency, Speed: 1427 1/min, Impeller type: axial, Speed controllable: yes, Reversibility: yes, Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Rated power: 128 W / in opt. Efficiency, INom: 0.55 A / in opt. Efficiency, IMax: 0.8 A, Protection class: IP 55, Thermal class: B, Installation location: wall / ceiling, Installation type: surface-mounted, Installation position: horizontal / vertical, Material: galvanized sheet steel, Color: silver, Weight: 9.2 kg, Weight with packaging: 11 kg, Nominal width: 350 mm, Width: 525 mm, Height: 525 mm, Depth: 244 mm, Width with packaging: 540 mm, Height with packaging: 540 mm, Depth with packaging: 335 mm, Conveyor temperature at nominal current: 70 °C, Conveyor temperature at IMax: -20 °C to 60 °C, Overall efficiency e: 28.4%, Measurement category: A, Efficiency category: static, Efficiency grade N: 40.4, VSD required: no, Year of manufacture: see type plate, Manufacturer name / official registration number / manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register Court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 0, 128 kW / 1870 m3/h / 70 Pa, nBEP: 1390 1/min, specific ratio: approx. 1, Information on dismantling and disposal: see assembly instructions, Information on installation, operation and maintenance: see assembly instructions, Items used in the efficiency measurement that are not described by the measurement category: -, Sound power level
