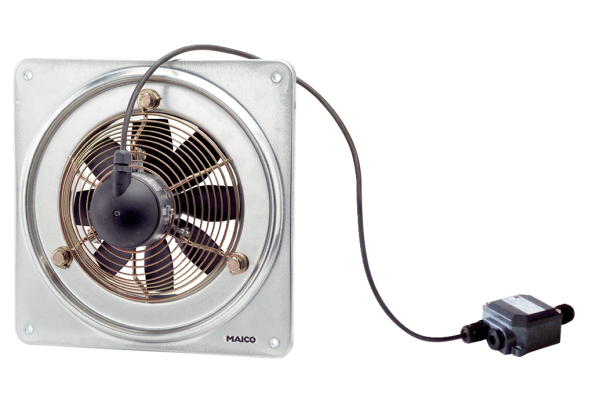

explosion-proof, with square wall plate, surface-mounted installation, protective grille on the suction side, yellow chromated, contact protection in accordance with DIN EN ISO 13857, robust motor with ball bearing, maintenance-free, AC motor not reversible, no speed control permitted, connecting cable approx. 2 m long, for zones 1 and 2
| Property | Value |
| Installation location: | Wall |
| Housing material: | Steel |
| Protection class (IP): | IP64 |
| Channel width: | 345 mm |
| Duct height: | 345 mm |
| Explosion protection category for gas: | ATEX gas explosion protection, cat. 2G |
| For Ex zone gas: | 1, 2 |
| Nominal voltage: | 0 to 230 V |
| Frequency: | 0 to 50 Hz |
| Power consumption: | 45 kW |
| Air volume unloaded: | 440 m³/h |
Features
Power consumption
45 kW
Manufacturer
HAN
0083.0850
GTIN
4012799838500
Explosion protection category for gas
ATEX gas explosion protection, cat. 2G
Frequency
0 to 50 Hz
Nominal voltage
0 to 230V
IP protection)
IP64
Housing material
Steel
