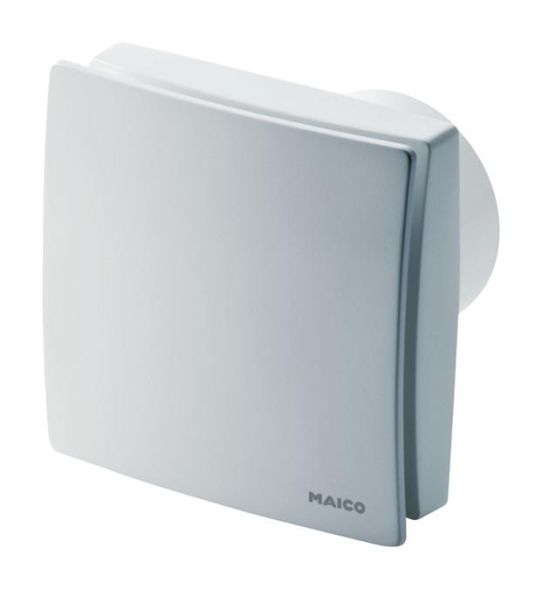

Maico 0084.0088 ECA 150 ipro RCH small fan

Version with radio receiver and humidity control: With integrated 868 MHz radio receiver and humidity control. Barrier-free product, as it switches on and off automatically via a humidity sensor. No need to set the switch-on humidity. Fan monitors the humidity level. Automatically ventilates at level 1 or level 2 depending on the room humidity. Can be switched with a separate DS RC radio switch or a separate RLS RC control. The two speeds can be selected either on the radio switch or on the control. Speed cannot be controlled. Radio-controlled fan for the MAICOsmart exhaust air system, with built-in 868 MHz radio receiver, based on EnOcean technology. The fan can be operated with a double rocker switch (DS RC) (no cable laying between switch and fan necessary). The fan can be installed in a master-slave network with other ECA 150 ipro RC/RCH/KRC/KRCH (RLS RC necessary). A combination of ECA 150 ipro RC/RCH/KRC/ KRCH with ECA 100 ipro RC/RCH or ER 100 RC is not possible. Two power levels. Concealed intake through design cover. For ventilation. With VDE-GS mark. Protection class IP X5 for safety in the bathroom. Protection class II. Color traffic white similar to RAL 9016. Housing made of impact-resistant plastic. Motor: Energy-saving, robust motor with ball bearing, maintenance-free. Suitable for continuous operation. Installation instructions: Extremely easy installation as cover can be easily removed with tools. Compatible with ECA predecessor models DN 150 as mounting holes and flush-mounted cable entry in the same place. Electrical connection: Flush-mounted electrical connection. Safety note: The fans correspond to protection class IP X5 and can therefore be installed in protection area 1 according to DIN0100-701. For details, see the planning information in the Small Room Fans chapter. Article: ECA 150 ipro RCH, Design: Radio receiver and humidity control, Air flow volume: 200 m3/h / 250 m3/h, Speed: 1672 1/min / 2189 1/min, Speed controllable: no, Reversibility: no, SEC average: -24.57 kWh/(m2*a), Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Nominal power: 15 W / 19 W, IMax: 0.09 A, Protection class: IP X5, Mains cable: 5 / 1.5 mm2, Installation location: Ceiling / wall, Installation type: Surface-mounted, Installation position: Any, Material: Plastic, Color: Traffic white, similar to RAL 9016, Weight: 1.62 kg, Weight with packaging: 1.896 kg, Flap: none, Nominal width: 150 mm, width: 228 mm, height: 228 mm, depth: 189.3 mm, width with packaging: 235 mm, height with packaging: 235 mm, depth with packaging: 200 mm, conveying medium temperature at IMax: 40 °C, sound pressure level: 33 dB(A) / 40 dB(A) / distance 3 m, free field conditions
