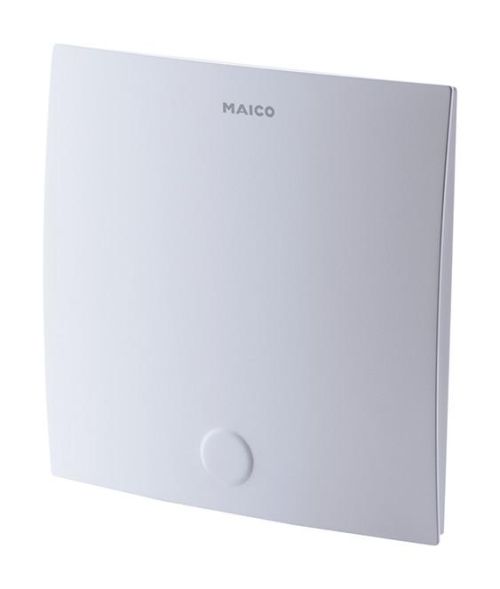

ER-AB - version with motion detector and intelligent time module: Cover with motion detector, intelligent time module and LED filter change indicator. Barrier-free product, as it switches on/off automatically via an integrated motion detector. All settings via intuitive, capacitive control surface, no intervention on the circuit board or fiddling with 230 V components necessary. Individual adjustment of the flow volume (20/30/40/60/100 m3/h) possible. Electrical plug connection for quick, tool-free connection of the cover to the fan. Control of the full load level via motion detector. Once movement is detected, the full load level is activated without a switch-on delay. Range of the motion detector: 5 m. The full load level can be switched on/off via a light switch or a separate switch, with an adjustable switch-on delay (0/30/60*/90/120 sec). When operated manually (e.g. via a light switch), the set switch-on delay and run-on time apply. Adjustable run-on time for the full load stage (0/3/6/15*/24/30 min). Adjustable key lock (tenant protection). Protection class II. Special features: Flow-optimized, elegant design. Filter can be changed without tools. With filter change indicator. The device can be operated continuously in the base load stage. Protection class IP X5 for safety in the bathroom. Color traffic white, similar to RAL 9016. For single-room ventilation with a single fan. Filter ISO Coarse 30% (G2), filter change without tools. Cover can be rotated by +- 5°, allowing compensation if the housing is installed at an angle. Speed cannot be controlled. Circuit variant: The base load can be switched on or off with an additional switch (see circuit diagrams on the Internet). *Factory setting Article: ER-AB, Design: motion detector with intelligent time module, Delivery volume: 20 m3/h / 30 m3/h / 40 m3/h / 60 m3/h / 100 m3/h / according to factory setting level 1: 30 m3/h and level 2: 60 m3/h, Air direction: ventilation, Protection class: IP X5, Installation location: wall / ceiling, System type: decentralized, Housing material: plastic, Color: traffic white, similar to RAL 9016, Weight: 0.594 kg, Weight with packaging: 0.746 kg, Filter class: ISO Coarse 30% (G2), Width: 281 mm, Height: 281 mm, Depth: 33 mm, Width with packaging: 305 mm, Height with packaging: 450 mm, Depth with packaging: 295 mm, Conveyor temperature at IMax: 40 °C, sound pressure level: 15 dB(A) / 16 dB(A) / 23 dB(A) / 35 dB(A) / 48 dB(A) / combined with ER GH, 27 dB(A) / 31 dB(A) / 35 dB(A) / 41 dB(A) / 51 dB(A) combined with ER GH AP/APB/ Specification according to DIN 18017-3 with an equivalent absorption area AL = 10 m2
| Property | Value |
| Type of mechanical accessories: | other |
