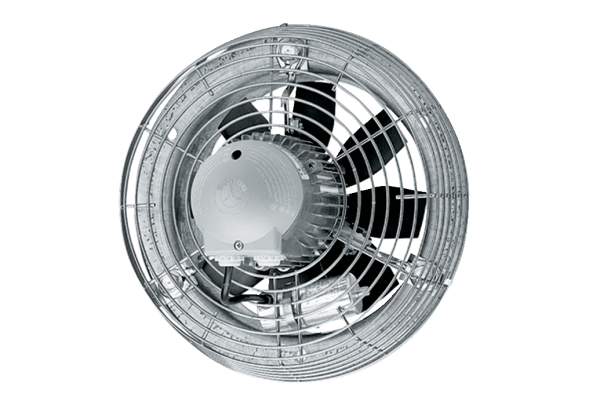

Maico 0094.0018 Axial wall fan DZS 35/4 B

Protective grille on the suction side, yellow chromated, contact protection in accordance with DIN EN ISO 13857. 8-blade impellers made of glass fiber reinforced polyamide. Dynamically balanced in 2 levels, in accordance with quality level 6.3, DIN ISO 1940, Part 1. Installation in any position possible. Direction of conveyance: The following illustration shows the direction of conveyance: Direction of conveyance A: Suction via the motor, standard. Direction of conveyance B: Blowing via the motor, on request. Direction of rotation, reversing operation: The volume flow is reduced by approx. 35% in abnormal direction of conveyance. Motor: Asynchronous motor. Speed controllable. Exception: Type EZQ 45/6 B, EZS 45/6 B, DZQ 40/2 B and DZS 40/2 B. Reversible. Exception: Fans with shaded pole motor (...-E). Not suitable for conveying air saturated with water vapor. Three-phase motor: DZQ and DZS series. Rated voltage 400 V, 50 Hz. Protection class IP 55. Exception DZQ/DZS... D IP 54. Thermal overload protection as standard. Exception: Available on request for DZQ/DZS 25/4 D and pole-changing axial wall fans. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided by the customer. Pole-changing motors with speed ratios 8/4 or 4/2 are connected using the Dahlander principle. Electrical connection: On terminal block in the end cover of the motor. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZS 35/4 B, design: steel wall ring, delivery volume: 2840 m3/h, delivery volumeNominal: 1950 m3/h / in opt. efficiency, pressure pfs, nominal: 70 Pa - in opt. efficiency, speed nNominal: 1380 1/min - in opt. efficiency, speed: 1410 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 133 W / in opt. efficiency, INom: 0.35 A / in opt. Efficiency, IMax: 0.4 A, Protection class: IP 55, Thermal class: B, Mains cable: 7 / 1.5 mm2, Installation location: wall / ceiling, Installation type: surface-mounted, Installation position: horizontal / vertical, Material: galvanized sheet steel, Weight: 6.5 kg, Nominal width: 350 mm, Width: 525 mm, Height: 525 mm, Depth: 248 mm, Conveyor temperature at nominal current: -20 °C to 60 °C, Conveyor temperature at IMax: -20 °C to 60 °C, Overall efficiency e: 28.5%, Measurement category: A, Efficiency category: static, Efficiency level N: 40.4, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 0, 133 kW / 1950 m3/h / 70 Pa, nBEP: 1380 1/min, specific ratio: approx. 1, information on dismantling and disposal: see assembly instructions, information on installation, operation and maintenance: see assembly instructions, items used in the efficiency measurement that are not described by the measurement category: -, sound power levelLWA7: 69 dB(A), closure flap: without
