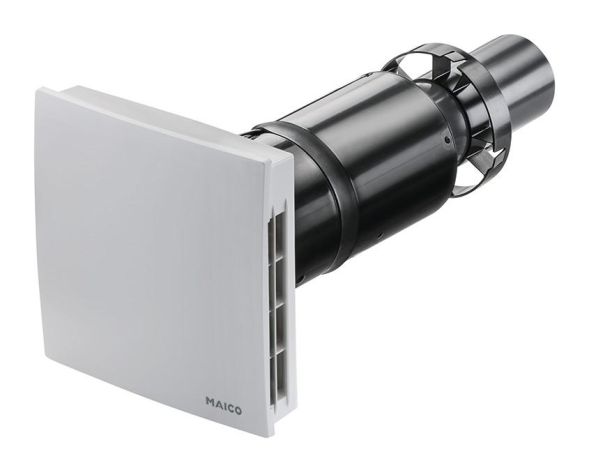

Approvals and validated: Test report according to EN 13141-8. Entry in TZWL Bulletin. Heat exchanger: With the high-performance heat exchangers and the highly efficient EC fans, the devices achieve a heat provision level of 73% at the reference volume flow according to EN 13141-8. Installation instructions: Installation takes place in 2 steps: Installation of the shell sleeve PP 45 RHK (DN 160) or RHL (DN 160) and an external cover in a core hole DN 160 with an incline of 1-2%. We recommend making the core hole with DN 182 and aligning the incline of the sleeve using the enclosed Styrofoam wedges. The shell sleeve is protected from contamination with plaster protection covers. This is followed by the integration of the final assembly set. No pipe laying necessary and no adjustment of the system necessary. Electrical connection: The device is delivered assembled and ready for use. The PPB 30 RC is connected directly to 230 V. ATTENTION: Check the area of application (protection zone) of the device. Condensate drain: The condensate is drained via an integrated condensate drip edge in the outer cover. Article: PPB 30 RC, delivery volume: 5 m3/h / 12 m3/h / 18 m3/h / 22 m3/h / 26 m3/h, energy efficiency class: A, rated voltage: 230 V, SPI value according to DIN EN 13141-8: 0.18 Wh/m3, maximum power consumption: 2 W / 2.5 W / 3.2 W / 4 W / 5.1 W, protection class: IP X4, installation position: horizontal, system type: decentralized, material: plastic, housing material: plastic, heat exchanger material: ceramic, color: traffic white, similar to RAL 9016, weight: 4.47 kg, weight with packaging: 5.524 kg, filter type: external and exhaust air filter, filter class: G3/G3, connection diameter: 160 mm, width: 275 mm, height: 275 mm, depth: 410 mm, width with packaging: 300 mm, height with packaging: 330 mm, depth with packaging: 500 mm, required wall opening: 162 to 182 mm, wall thickness: 320 mm / 500 mm, heat provision level at reference volume flow according to DIN EN 13141-8: 73.3%, required room air control: DS 45 RC or RLS 45 K with PP 45 EO, sound pressure level: 23 dB(A) / 35 dB(A) / 43 dB(A) / 48 dB(A) / 51 dB(A) / distance 1 m, free field conditions, rated max. element standard sound level difference Dn, w: 37 dB, country of origin: Germany, type of ventilation: decentralized supply and exhaust air, heat recovery via: other, heat provision level: 73.3 %
| Property | Value |
| Heat provision rate: | 73 % |
| Height: | 275 mm |
| Width: | 275 mm |
| Depth: | 410 mm |
| Weight: | 4.47 kg |
| Heat source: | Outside air |
| Heat recovery via: | other |
| Air connection diameter: | 160 mm |
| Type of ventilation: | decentralized supply and exhaust air |
| With heating: | no |
| With hot water preparation: | no |
| With water air heater: | no |
| With additional heating: | no |
| With remote control: | no |
