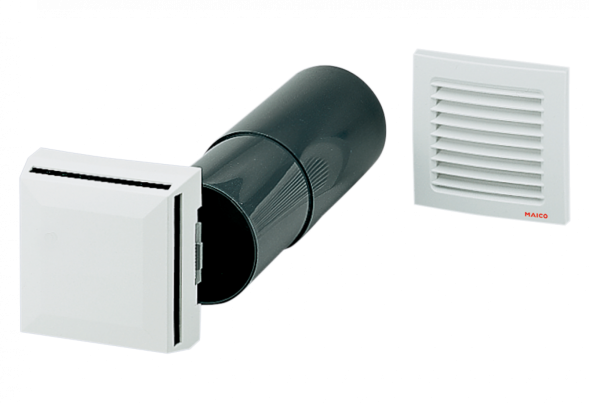

Outside air outlet for draft-free, decentralized home ventilation. Continuous regulation of the air flow. No electrical connection necessary. Packaging unit: inner part, dust or insect filter, wall sleeve up to 500 mm, outer grille with fly screen. Accessories: Storm protection ALDS 10, replacement filter ALDF 10.Article: ALD 10, Air direction: Ventilation, Max. volume flow: 32 m3/h / at 10 Pa, Installation location: Wall, Material: Plastic, Color: pure white, similar to RAL 9010, Weight: 0.983 kg, Weight with packaging: 1.21 kg, Filter type: Dust filter, Filter class: ISO Coarse 30% (G2), Flap type: manual, Nominal width: 100 mm, Width: 150 mm, Height: 150 mm, Depth: 580 mm, Width with packaging: 280 mm, Height with packaging: 155 mm, Depth with packaging: 280 mm, Ambient temperature: 60 °C, Rated max. element standard sound level difference Dn, w: 31 dB, Suitable for box fans: no, Suitable for roof fans: no, Suitable for duct fans: no, Suitable for Heat recovery systems: no, Suitable for wall-mounted fans: yes, Suitable for wall-mounted fans: no, Suitable for residential fans: yes, Suitable for centrifugal fans: no, Suitable for circulation fans: no
| Property | Value |
| Color: | white |
| Material: | Plastic |
| Front width: | 150 mm |
| Front length: | 580 mm |
| RAL number: | 9010 |
