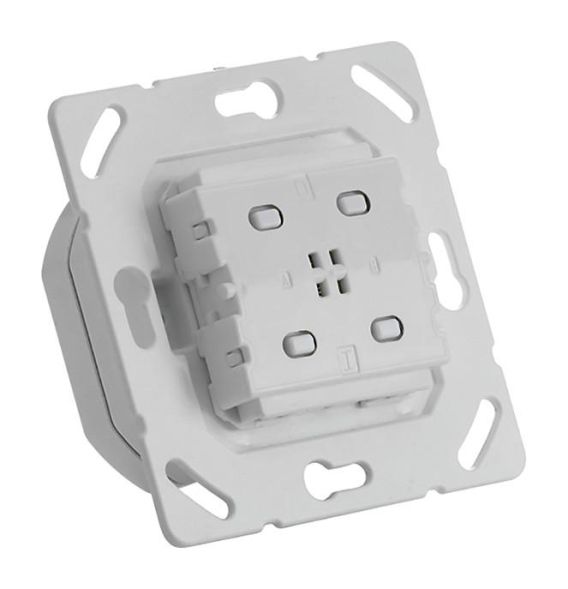

With the EnOcean Actor, the PushPull radio devices PP 45 RC can be combined with wired exhaust air devices (ECA, ER) to form a ventilation system. The Actor can be used as a normal light switch. The wired exhaust air devices (ECA, ER) are switched on at the touch of a button and at the same time a radio telegram is sent to the final assembly set PP 45 RC (master). The PP 45 RC devices (master + slave) provide the supply air required for the exhaust air devices. The Actor integrates with all common switch programs and is operated locally via two series rockers or a surface rocker. The frame and the rockers (for EnOcean radio switches) are not included in the scope of delivery.Article: PP 45 ACT, power supply cable: 5 / 1.5 mm2, installation location: wall, installation type: flush-mounted, material: plastic, weight: 0.07 kg, weight with packaging: 0.1 kg, width: 70 mm, height: 70 mm, depth: 40 mm, width with packaging: 85 mm, height with packaging: 85 mm, depth with packaging: 50 mm
| Property | Value |
| KNX bus system: | no |
| Mounting type: | flush-mounted |
| Radio bus system: | yes |
| Bus system Powernet: | no |
| Bus system LON: | no |
| Other bus systems: | other |
| Material: | plastic |
| Bus system KNX radio: | no |
