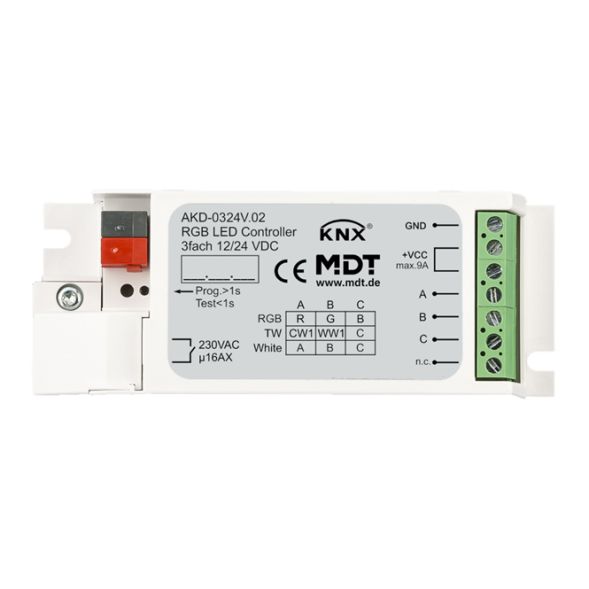

MDT AKD-0324V.02 KNX LED dimming actuator DE | 3-fold

![CDATA[KNX LED controller 3-channel 3/6 A, RGB. For 12/24 V CV LED, 3 individual channels or RGB, TW. Extensive application. Absolute and relative dimming for HSV color space and RGB. Tunable White color temperature control. Selectable dimming curve and PWM frequency up to 1000 Hz. Global and individual dimming speeds. Individual and predefined sequences (e.g. TV simulator). For 12/24 V CV LED, (common anode). Switchable load distribution: 3 channels 3 A each or 1 channel 4.5 A and 2 channels 2.25 A each. Parallel operation of two channels with 6 A. Operating modes: 3 x white, RGB, tunable white. Automatic color temperature control Dim2Warm. Dynamic daylight control HCL (biologically effective light). Automatic time-dependent dimming. Day/night function. Overcurrent and temperature monitoring. Intelligent 16 A C-load relay output for switching the external LED power supply. Dimensions (W x H x D): 46mm x 25mm x 113mm. 3 year product guarantee.]]>
