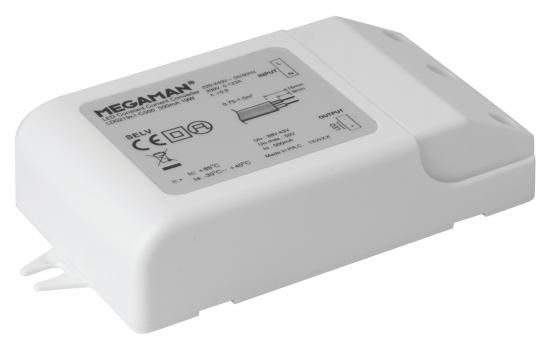

LED driver for Rico HR or LED puck. Dimmable LED driver. Thanks to the new U-Dim technology, this driver can be controlled with most leading and trailing edge dimmers. The dimming curve runs flicker-free from 100% - 5%. It is extremely flat.
| Feature | Value |
| Output power: | 21 W |
| Protection class (IP): | IP20 |
| Output voltage: | 30 to 60 V |
| Output current: | 350 mA |
| Protection class: | II |
| Length: | 116 mm |
| Width: | 55 mm |
| Height: | 25 mm |
| Housing: | Plastic housing |
| Suitable for Constant voltage: | no |
| Suitable for constant current: | yes |
| Suitable for direct voltage (primary side): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | yes |
| Dimming leading edge: | yes |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push button: | no |
| Without dimming function: | no |
| Constant luminous flux control: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Suitable for constant current
Yes
Suitable for constant voltage
No
Output power
21 W
Suitable for direct voltage (primary side)
No
Output current
350 mA
HAB
21W 350mA for 3xPUCK RICO HR
Manufacturer
HAN
MM56019
GTIN
4020856560196
Output voltage
30 to 60 V
Width
55 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
Yes
Dimming phase control
Yes
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Housing
Plastic housing
Height
25 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Length
116 mm
Without dimming function
No
IP protection)
IP20
Protection class
II
