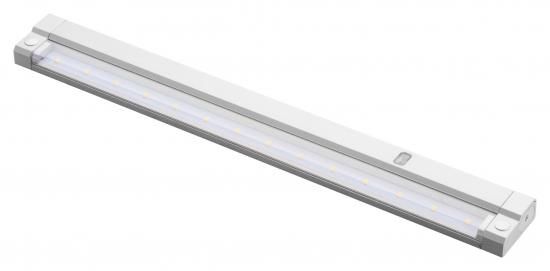

Under-cabinet light with integrated LEDs. PIR sensor for contactless switching and extra main switch on the side. Up to 10 lights can be combined. Includes 180cm connection cable and 30cm connecting cable. Ideal for private use.
| Property | Value |
| System power: | 5 W |
| Luminous flux: | 380 lm |
| Length: | 385 mm |
| Width: | 45 mm |
| Height/depth: | 17 mm |
| Protection type (IP): | IP20 |
| Protection class: | II |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Material of Housing: | Plastic |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | yes |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | Plastic transparent |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for Light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| DMX dimming: | no |
| DSI dimming: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Luminaire luminous efficacy: | 76 lm/W |
| Power factor: | 0.5 |
| Type of wiring: | Termination |
| Number of poles: | 2 |
| Replaceable control gear: | no |
| Dimming DALI-2: | no |
| Color consistency (McAdam ellipse): | SDCM6 |
| Emergency power supply integrated: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
380WH5.5W 370lm 830 i.Cable
Manufacturer
HAN
MT70130
GTIN
4020856701308
Type of wiring
Diploma
Execution of the grid
Without
Beam angle adjustable
No
Replaceable operating device
No
Operation via Bluetooth
No
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Width
45 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Height/Depth
17 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.5
Luminaire luminous efficacy
76lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
380lm
Luminous flux adjustable
No
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
385 mm
With operating device
Yes
With motion detector
Yes
With light source
Yes
With light sensor
No
Nominal voltage
Emergency power supply integrated
No
Without dimming function
Yes
Number of poles
2
IP protection)
IP20
Protection class
II
Voltage type
System performance
5W
Cover material
Plastic transparent
Housing material
Plastic
