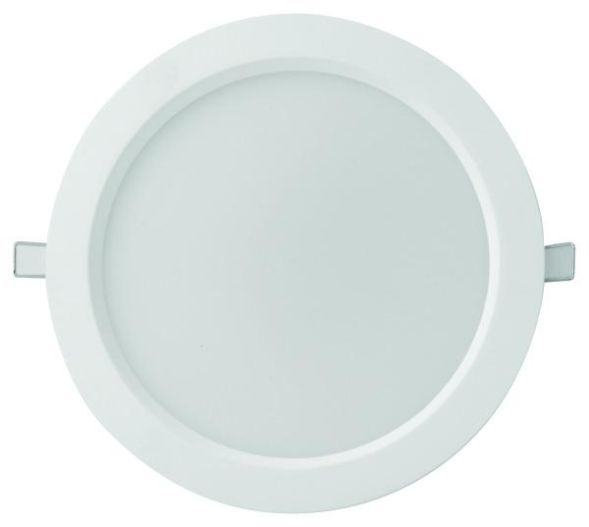

LED recessed light with a mounting depth of just 35mm or 38mm. The diffuser emits a low-glare, wide-beam light. Protection class IP44. The ideal replacement for halogen recessed spotlights due to its high energy efficiency.
| Property | Value |
| System power: | 25 W |
| Rated luminous flux: | 2000 lm |
| Housing color: | white |
| Housing material: | plastic |
| Protection class (IP): | IP44 |
| Outer diameter: | 225 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | III |
| With Light source: | yes |
| Installation height/depth: | 38 mm |
| With control gear: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 38 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 2800 K |
| Nominal voltage: | 34 to 40 V |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Beam angle: | extremely wide beam>80° |
| Reflector: | without |
| Luminous flux: | 2000 lm |
| Cover material: | opal plastic |
| Voltage type: | DC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | untreated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | yes |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | yes |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming Phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Luminous intensity: | 880 cd |
| Type of wiring: | termination |
| Suitable for computer workstations according to EN 12464-1: | no |
| Color consistency (McAdam ellipse): | SDCM6 |
| Replaceable operating device: | yes |
| Dimming DALI-2: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | continuously |
| Beam angle adjustable: | no |
| Installation diameter: | 200 mm |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
Rated luminous flux
2000 lm
Manufacturer
HAN
MM76717
GTIN
4020856767175
Type of wiring
Diploma
Beam angle adjustable
No
Replaceable operating device
Yes
Outer diameter
225 mm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
Yes
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
200 mm
Installation height/depth
38 mm
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color temperature adjustable
No
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
38 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
2000lm
Luminous flux adjustable
Continuously variable
Light intensity
880 cd
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Untreated
Without dimming function
No
Reflector
Without
IP protection)
IP44
Protection class
III
Voltage type
System performance
25W
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Plastic
