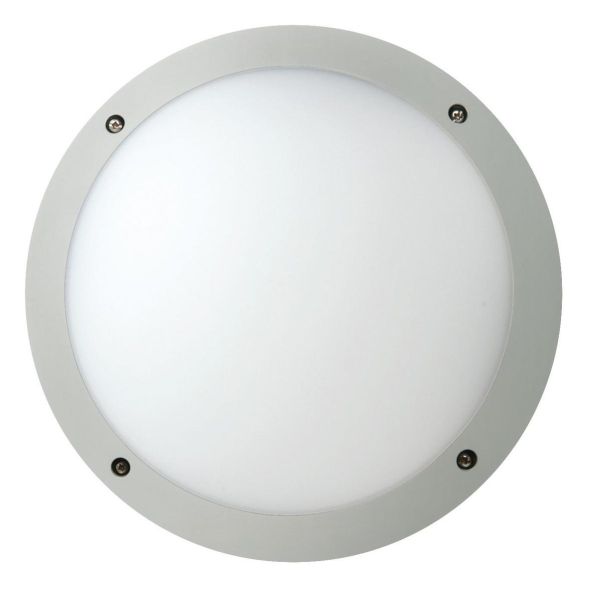

LED surface-mounted light with integrated LED suitable for wall and ceiling mounting. Protected against vandalism (IK10) and UV resistant / corrosion-free. Can also be used for through-wiring (2 cable entries). Can be equipped with an emergency power module (MM77127) or HF sensor (MM77128).
| Property | Value |
| System power: | 22 W |
| Luminous flux: | 2000 lm |
| Height/depth: | 85 mm |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Nominal voltage: | 180 to 260 V |
| Housing color: | other |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Impact resistance: | IK10 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Outer diameter: | 300 mm |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | free beam/diffuse |
| With light source: | yes |
| Light source: | LED not replaceable |
| Connection type: | Plug terminal |
| With Operating device: | yes |
| Cover material: | matt/satin plastic |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Design of the grid: | without |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Luminaire luminous efficacy: | 100 lm/W |
| Power factor: | 0.9 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Color consistency (McAdam ellipse): | SDCM6 |
| Emergency power supply integrated: | yes |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
FONDA+ SV 22W 2000 1500 1000lm 840
Manufacturer
HAN
MM77113
GTIN
4020856771134
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Beam angle
Free-radiating/diffuse
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
300 mm
Operation via Bluetooth
No
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
No
Housing color
Other
Height/Depth
85 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.9
Luminaire luminous efficacy
100lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
2000lm
Luminous flux adjustable
No
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
Emergency power supply integrated
Yes
Without dimming function
Yes
Number of poles
3
Impact resistance
IK10
IP protection)
IP66
Protection class
II
Voltage type
System performance
22W
Cover material
Plastic matt/satin
Housing material
Plastic
