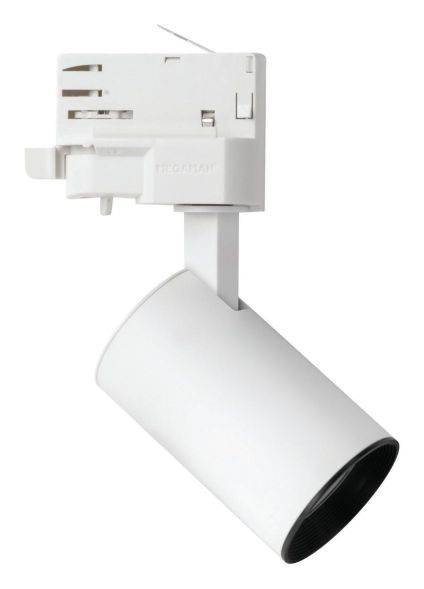

Track spotlight for universal 3-phase power track with dual beam technology including LED driver. Adjustable for precise lighting: 330° rotatable and 90° pivotable. Achieves optimal lighting effect through different beam angles. Impresses with brilliant, bright light and is characterized by a modern, attractive lighting design. Suitable for commercial users.
| Property | Value |
| System power: | 12 W |
| Rated luminous flux: | 950 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 110 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With Light source: | yes |
| With control gear: | yes |
| Suitable for recessed mounting: | no |
| Height/depth: | 160 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 2800 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | no |
| Light distribution: | symmetrical |
| Operating device: | not required |
| Beam angle: | medium beam 21-40° |
| Reflector: | other |
| Luminous flux: | 950 lm |
| Cover material: | structured plastic |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | yes |
| Adjustability: | rotatable and pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | painted |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming Phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | other |
| Light emission: | direct |
| Luminous intensity: | 5500 cd |
| Wiring type: | Termination |
| Power factor: | 0.9 |
| Connection type: | other |
| Luminaire luminous efficacy: | 79.17 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Color consistency (McAdam ellipse): | SDCM3 |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | levels |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| Article color: | white |
Features
Rated luminous flux
950 lm
HAB
Marco Mini DBT WH 24° 36° 12W 950lm 828
Manufacturer
HAN
MM78932
GTIN
4020856789320
Connection type
Other
Type of wiring
Diploma
Beam angle
Medium beam 21-40°
Beam angle adjustable
Stages
Replaceable operating device
No
Outer diameter
110 mm
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM3
Color temperature
Color temperature adjustable
No
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
No
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
Yes
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
160 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.9
Luminaire luminous efficacy
79.17lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
950lm
Luminous flux adjustable
No
Light intensity
5500 cd
Light distributor
Other
Light distribution
Symmetrical
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Painted
Without dimming function
Yes
Reflector
Other
IP protection)
IP20
Protection class
II
Voltage type
System performance
12W
Adjustability
Rotatable and pivotable
Cover material
Plastic structured
Housing material
Aluminum
