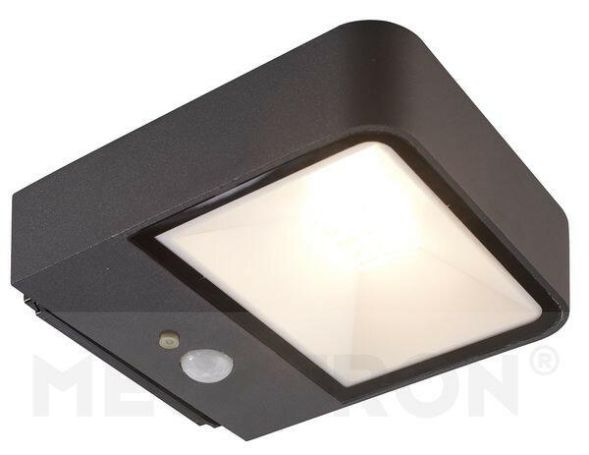

WANDIA solar wall light. Functional and flat solar light for installation without a mains connection. High-quality and robust die-cast aluminum housing IP54, anthracite colored. Three lighting programs with automatic dimming and energy saving functions and control - via PIR sensor. LED 220 lumen warm white light. Lighting time up to 22 hours (summer). 100ø beam angle.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 300 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection rating (IP): | IP54 |
| Protection class: | III |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 45 °C |
| Length: | 146 mm |
| Width: | 122 mm |
| Height/Depth: | 50 mm |
| Voltage type: | DC |
| Nominal voltage: | 3.7 V |
| Max. System power: | 2 W |
| Luminaire luminous efficacy: | 150 lm/W |
| With control gear: | yes |
| Control gear: | not required |
| Connection type: | other |
| Type of wiring: | termination |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Beam angle: | extremely wide beam >,80° |
| Light distributor: | Diffuser lens/optics/panel |
| Housing color: | anthracite |
| Housing material: | aluminium |
| Cover material: | opal plastic |
| Glow wire test according to IEC 60695-2-11: | without |
| Weight: | 0.6 |
| Weight unit: | KG |
| Luminous flux: | 300 lm |
| With Motion detector: | yes |
| Reflector: | without |
| Surface: | powder-coated |
| With light sensor: | yes |
| Integrated emergency power supply: | yes |
| Light color: | white |
| Adjustability: | not adjustable |
| Suitable for pedestal/floor mounting: | yes |
| Rated service life L70/B50 at 25 °C: | 25000 h |
| Dimming potentiometer (integrated in device): | yes |
| Luminous flux adjustable: | Levels |
| Short description: | MEGATRON PRO WANDIA PIR solar wall light 2W-200lm/3000K IP65 |
Features
HAB
MT PRO WANDIA PIR Sol 2W 220lm 3K IP54
Manufacturer
HAN
MT70019
GTIN
4020856700196
Connection type
Other
Type of wiring
Diploma
Beam angle
Extremely wide beam >80°
Rated lifetime L70/B50 at 25 °C
25000 hours
Rated luminous flux according to IEC 62722-2-1
300lm
Rated ambient temperature according to IEC62722-2-1
-20 - 45 °C
Operating device
Not required
Width
122 mm
Dimming potentiometer (integrated)
Yes
Color consistency (McAdam ellipse)
SDCM6
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for podium/floor mounting
Yes
Housing color
Anthracite
Weight
0,6
Weight unit
kg
Glow wire test according to IEC 60695-2-11
Without
Height/Depth
50 mm
Short description
MEGATRON PRO WANDIA PIR solar wall light 2W-200lm/3000K IP65
Luminaire luminous efficacy
150lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
300lm
Luminous flux adjustable
Stages
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
146 mm
Max. system performance
2W
With operating device
Yes
With motion detector
Yes
With light source
Yes
With light sensor
Yes
Nominal voltage
3.7V
Emergency power supply integrated
Yes
Surface
Powder coated
Reflector
Without
IP protection)
IP54
Protection class
III
Voltage type
DC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
