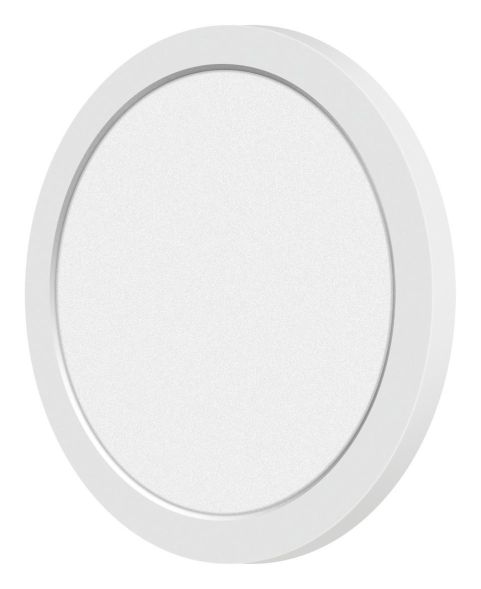

PANO renovation lights replace old ceiling lights quickly and easily with the latest LED technology. You can set the color temperature to 3000K, 4000K or 6500K according to customer requirements. The variable mounting system adapts to round or square ceiling cutouts from 55mm to 250mm. Openings, color edges or differences in brightness in wooden ceilings are covered. Annoying painting and filling work is no longer necessary. Also ideal for initial equipment (new buildings).
| Property | Value |
| System power: | 18 W |
| Rated luminous flux: | 1700 lm |
| Housing color: | white |
| Housing material: | plastic |
| Protection class (IP): | IP20 |
| Outer diameter: | 217 mm |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| With Operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 15 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 3000 to 6500 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | not required |
| Beam angle: | extremely wide beam>80° |
| Reflector: | without |
| Luminous flux: | 1700 lm |
| Cover material: | plastic, matt/satin |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface protection: | other |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming Phase control: | yes |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Luminous intensity: | 600 cd |
| Type of wiring: | termination |
| Power factor: | 0.9 |
| Number of poles: | 2 |
| Luminous efficacy: | 95 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Color consistency (McAdam ellipse): | SDCM6 |
| Replaceable control gear: | no |
| DALI-2 dimming: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | levels |
| Luminous flux adjustable: | continuously |
| Beam angle adjustable: | no |
| Installation diameter: | 55 to 175 mm |
| Emergency power supply integrated: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
Rated luminous flux
1700 lm
HAB
Pano Dim. Round CCT 217 18W 1700lm 830
Manufacturer
HAN
MT76112
GTIN
4020856761128
Type of wiring
Diploma
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
217 mm
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
Yes
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
55 to 175 mm
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color temperature adjustable
Stages
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
15 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.9
Luminaire luminous efficacy
95lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1700lm
Luminous flux adjustable
Continuously variable
Light intensity
600 cd
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Other
Without dimming function
No
Number of poles
2
Reflector
Without
IP protection)
IP20
Protection class
II
Voltage type
System performance
18W
Adjustability
Not adjustable
Cover material
Plastic matt/satin
Housing material
Plastic
