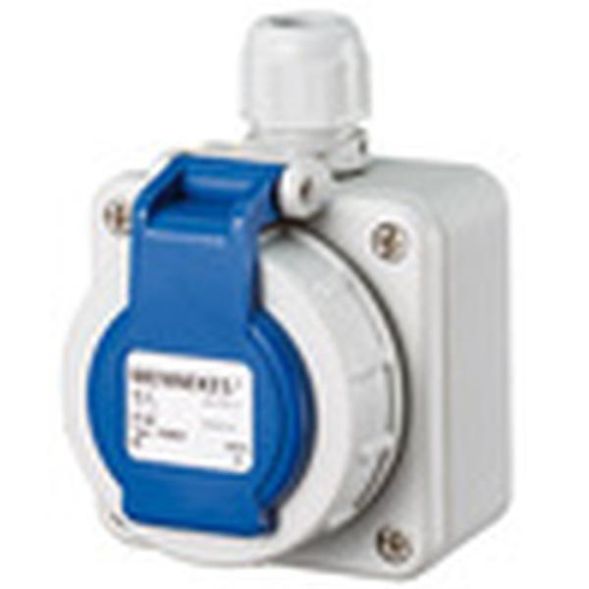

Wall socket SCHUKO, 16A230V, IP68, BL-GR IP68, blue, external metal parts made of stainless steel
| Property | Value |
| Version: | SCHUKO |
| Number of units: | 1 |
| Suitable for protection class (IP): | IP67 |
| Rated voltage: | 230 V |
| Rated current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Surface-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | other |
| Twisted central insert: | no |
| Connection type: | Screw terminal |
| With fine fuse: | no |
| Fastening type: | Fastening with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | other |
| Surface finish: | matt |
| Device width: | 75 mm |
| Device height: | 75 mm |
| Device depth: | 108 mm |
| With orientation lighting: | no |
| Impact resistance: | IK10 |
| Protective contact: | yes |
| Round protective conductor contact: | yes |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 75 mm |
Features
HAB
10863 16A2P+E 230V DWD blue
Manufacturer
HAN
10863
GTIN
4015394035701
Lockable
No
Connection type
Screw terminal
Antibacterial treatment
No
Number of Units
1
Number of phases
1
Version
SCHUKO
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Fastening with screw
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP67
Device width
75 mm
Device height
75 mm
Device depth
108 mm
Halogen free
Yes
Min. depth of the device box
75 mm
With micro fuse
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With increased contact protection
No
Mounting type
Surface-mounted
Nominal voltage
230V
Rated current
16A
Surface
Other
Impact resistance
IK10
Protective contact
Yes
Protective conductor contact round
Yes
Special power supply
Other
Text field/label area
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
