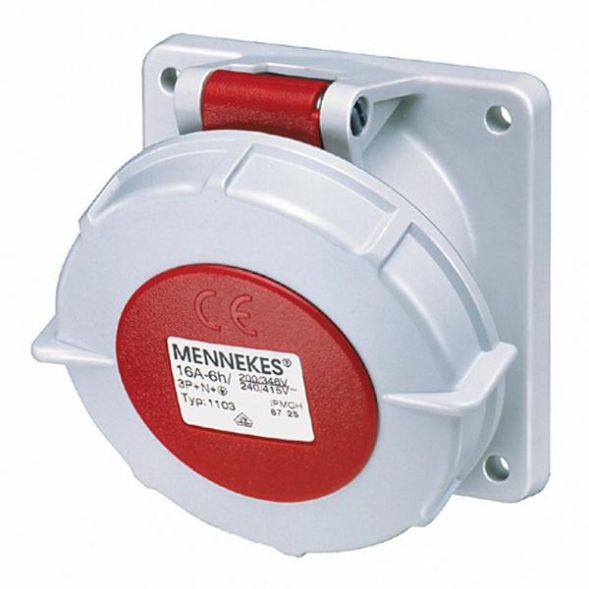

16A5P 6H400V panel box TwinCONTACT IP 67 screwless connection technology inclination 20° FL. 85 x 85 mm BL. 70 x 70 mm
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 5 |
| Connection technology: | screwless terminal |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time position: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP67 |
| Material: | plastic |
| Military version: | no |
| Horizontal hole spacing: | 70 mm |
| Vertical hole spacing: | 70 mm |
| Horizontal flange dimension: | 85 mm |
| Vertical flange dimension: | 85 mm |
| Cable entry: | other |
| Rated voltage: | 399 to 400 V |
| Rated frequency: | 50 to 60 Hz |
Features
Rated frequency
50 to 60 Hz
HAB
1173 16A5p 6H400V IP67
Manufacturer
HAN
1173
GTIN
4015394221517
Connection technology
Screwless terminal
Rated voltage
399 to 400 V
IEC current
16A
Cable entry
Other
Identification color
Red
Military version
No
Number of poles
5
IP protection)
IP67
Voltage according to EN 60309-2
400 V (50+60 Hz) red
UL/CSA current rating (if UL version required)
20A
Time position
6 hours
Material
Plastic
