Description

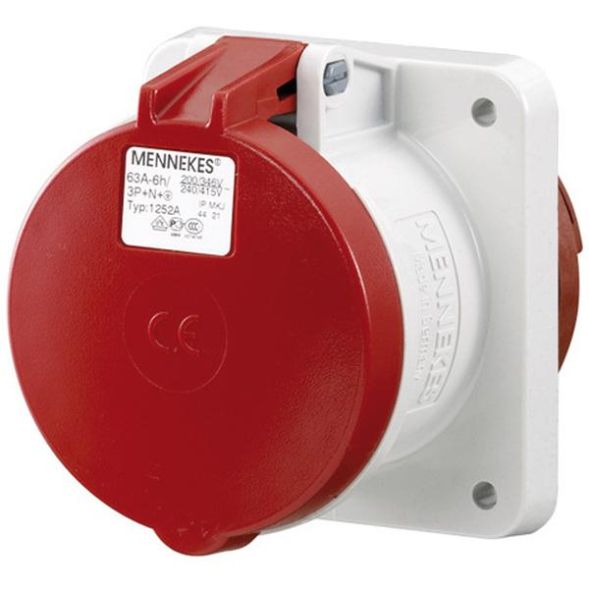

63A5P 6H400V surface-mounted box TA IP 44 with box terminal and X-CONTACT FL. 107 X 100 mm BL. 85 X 77 mm
| Property | Value |
| IEC current: | 63 A |
| UL/CSA current (if UL version required): | 60 A |
| Number of poles: | 5 |
| Connection technology: | screw terminal |
| Plug direction: | straight |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time position: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP44 |
| Material: | plastic |
| Military version: | no |
| Horizontal hole spacing: | 77 mm |
| Vertical hole spacing: | 85 mm |
| Horizontal flange dimension: | 100 mm |
| Vertical flange dimension: | 107 mm |
| Cable entry: | other |
| Rated voltage: | 399 to 400 V |
| Rated frequency: | 50 to 60 Hz |
Features
Rated frequency
50 to 60 Hz
HAB
1252A 63A5P 6H400V TA-IP44
Manufacturer
HAN
1252A
GTIN
4015394008842
Connection technology
Screw terminal
Rated voltage
399 to 400 V
IEC current
63 A
Cable entry
Other
Identification color
Red
Military version
No
Number of poles
5
IP protection)
IP44
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Plug direction
Straight
UL/CSA current rating (if UL version required)
60A
Time position
6 hours
Material
Plastic
