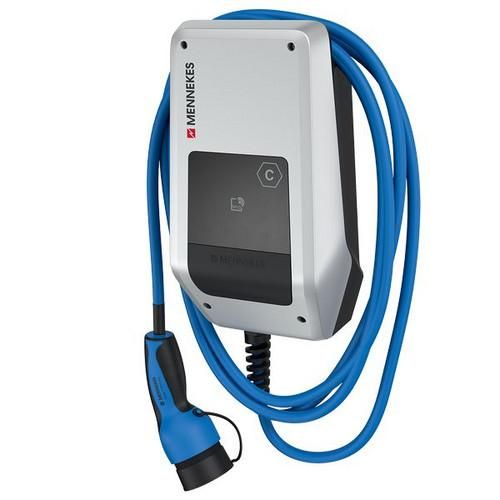

The AMTRON® Compact 2.0s wallbox is ideal for homeowners and rental property owners with rented parking spaces who want to charge their electric vehicle at home easily, conveniently and safely. As a modern charging station for private use, the MENNEKES charging solution combines the properties of easy handling and compact design with sophisticated, state-of-the-art electronics. AMTRON® Compact 2.0s's space-saving design makes it particularly suitable for use in tight garages or parking spaces at home. The firmly attached, 7.5-meter-long Type 2 charging cable offers plenty of freedom of movement and flexibility. In addition to easy charging and user-friendliness, AMTRON® Compact 2.0s scores with additional, attractive features. The highlight: The wallbox is equipped with a solar charging function. This means that self-generated, stored energy from your own roof can be used effectively to charge your electric car in an environmentally friendly way. AMTRON® Compact 2.0s complies with all current safety standards. Thanks to the integrated access protection via an RFID card system, the user can also safely charge electrically in carports or in freely accessible areas at home and restrict access to the wallbox. The charging point can be easily integrated into the existing energy management system of buildings via an open Modbus RTU interface.
| Property | Value |
| Height: | 361 mm |
| Width: | 207 mm |
| Depth: | 146 mm |
| Protection class (IP): | IP44 |
| Impact resistance: | IK10 |
| Nominal connected load: | 11 kW |
| Max. Output per charging point: | 11 kW |
| System side connection design: | 3-phase |
| Mounting type: | Wall mounting |
| Housing material: | Plastic |
| Number of charging points: | 1 |
| Number of charging couplings type 2: | 1 |
| Access control function: | yes |
| With energy meter: | no |
| With house connection box (HAK): | no |
| With communication interface: | yes |
| With load management: | yes |
| With circuit breaker: | no |
